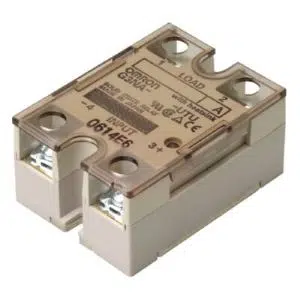

Omron G3NA-220B-UTU AC100-240 Solid-state Relay
The Omron G3NA-220B-UTU AC100-240 Solid-state Relay (SSR) delivers 100 to 240 VDC input, 24 to 240 VAC output, and 15 A (at 40 β) load performance reliably. This relay features a single β phase, 3-element structure with Photocoupler isolation, an Equipped zero-cross function for noise-free switching, and an Equipped operating indicator for real-time status monitoring. Its Screw terminal socket simplifies installation, while 220 A (60 Hz 1 cycle) inrush current resistivity, it ensures stable operation across its 75 to 264 VDC input range. Manufactured by Omron and listed under Omron Solid State Relay solutions, this model belongs to the G3NA Series.
| Brand | Omron |
| Product Type | Solid State Relay |
| Model Number | G3NA-220B-UTU AC100-240 |
Omron G3NA-220B-UTU AC100-240 Solid-state Relay - Technical Specifications
| Specification | Value |
|---|---|
| Product classification | For single β phase Heater |
| Number of phases | single β phase |
| Number of elements | 3 |
| Isolation method | Photocoupler |
| Zero cross function | Equipped |
| Operating indicator | Equipped |
| Terminal structure | Screw terminal |
| Mounting | screw mounting |
| Input Rated Voltage | 100 to 240 VDC |
| Input Operating voltage range | 75 to 264 VDC |
| Input current | 72 kΩ±20%. |
| Input Operate voltage | 75 VAC max. |
| Input Release voltage | 20 VAC min. |
| Output Rated load voltage | 24 to 240 VAC |
| Output Load voltage range | 19 to 264 VAC |
| Output Minimum load current | With heat sink (at 40 β): 0.1 to 10 A Without heat sink (at 40 β): 0.1 to 4 A |
| Output Load Current | 15 A (at 40 β) |
| Output Inrush current resistivity | 220 A (60 Hz 1 cycle) |
| Operate time | 3/2 cycle of load power source + 1 ms max. |
| Release time | 3/2 cycle of load power source + 1 ms max. |
| Output ON voltage drop | 1.6 V max. (RMS) |
| Leakage current | 5 mA max. (at 100 VAC) 10 mA max. (at 200 VAC) |
| Insulation resistance | 100 MΞ© min. (at 500 VDC) |
| Dielectric strength | 2500 VAC 50/60 Hz 1 min |
| Vibration resistance | 10 to 55 to 10 Hz, 0.175 mm single amplitude (0.35 mm double amplitude) |
| Shock resistance | 1000 m/s 2 |
| Ambient temperature (Operating) | -30 to 80 β (with no freezing or condensation) |
| Ambient temperature (Storage) | -30 to 100 β (with no freezing or condensation) |
| Ambient humidity (Operating) | 45 to 85% RH |
| Weight | Approx. 60 g |
