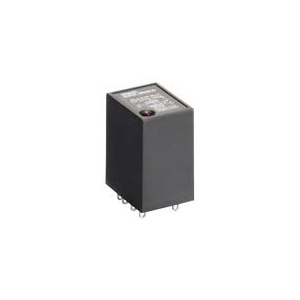

Omron G3FM-2R5SLN DC24 Solid-state Relay
The Omron G3FM-2R5SLN DC24 Solid-state Relay (SSR) provides 24 VDC input, 24β240 VAC output, and 0.5 A rated load capacity efficiently. This relay features a photo-voltage coupler isolation method, a nonβzero-cross design, and an equipped operating indicator for precise status monitoring. Its plug-in terminal structure supports secure wiring, while socket mounting ensures easy installation in compact control panels. With a fast 5 ms operate time, 10 ms release time, and support for both AC and DC loads, it offers reliable performance for automation circuits. Manufactured by Omron and listed under Omron Solid State Relay solutions, this model belongs to the G3FM Series.
| Brand | Omron |
| Product Type | Solid State Relays |
| Model Number | G3FM-2R5SLN DC24 |
Omron G3FM-2R5SLN DC24 Solid-state Relay - Technical Specifications
| Specification | Value |
|---|---|
| Isolation method | Photo volt coupler |
| Mounting | Socket |
| Operating indicator | Equipped |
| Rated voltage | 24 VDC |
| Rated load voltage | 24 VDC |
| Load current | 24 to 110 VDC 24 to 240 VAC |
| Terminal structure | Plug-in terminal |
| Operate time | 5 ms max. |
| Release time | 10 ms max. |
| Output ON voltage drop | 3 V max. (RMS) |
| Leakage current | 0.1 mA max. (at 200 VAC) |
| Insulation resistance | 100 MΞ© min. (at 500 VDC) |
| Dielectric strength | 1500 VAC 50/60 Hz 1 min |
| Vibration resistance | 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude) |
| Shock resistance | 1000 m/s2 |
| Ambient temperature (Operating | -30 to 80 β (with no freezing or condensation) |
| Ambient temperature (Storage) | -30 to 100 β (with no freezing or condensation) |
| Ambient humidity (Operating) | 45 to 85 % |
| Weight | Approx. 50 g |
The Omron G3FM-2R5SLN DC24 is a high-reliability solid state relay designed for precise low-current control. It features a built-in photovoltaic coupler and supports both AC (24β240 V) and DC (24β110 V) output loads at up to 0.5 A, making it ideal for compact automation systems and signal-level switching.
This relay is equipped with a 24 VDC input, a built-in operating indicator for quick status monitoring, and uses a plug-in terminal format for easy installation and maintenance. Designed without zero-cross functionality, it supports faster switching and minimal delay for real-time control needs. The relay operates with a fast response time of β€5 ms and ensures safe operation with minimal leakage current and low ON-state voltage drop.
With strong resistance to shock and vibration, and a wide operating temperature range of β30Β°C to 80Β°C, the G3FM-2R5SLN performs reliably in harsh environments. It is suited for control panels, signal switching, and precise load control in industrial automation.
