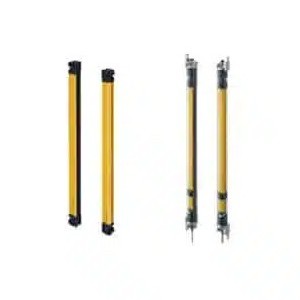

Omron F3SG-4SRB1600-25 Safety Light Curtain
Omron F3SG-4SRB1600-25 is a Safety Light Curtain providing 25 mm hand detection across a 1600 mm protective height. Its protective field consists of 80 infrared beams positioned with a 20 mm beam gap to detect opaque objects across a tall guarded machine access area. The operating range is specified at 0.3 to 20.0 m or 0.3 to 7.0 m depending on configuration. A SELV/PELV 24 VDC supply powers the unit, and PNP/NPN outputs provide the safety interface. Within the F3SG-SR Series, the F3SG-4SRB1600-25 provides substantial vertical hand protection. For high machine openings, explore 1600 mm hand detection safety curtains from Omron machine safeguarding solutions.
| Brand | Omron |
| Product | Safety Light Curtain |
| Model Number | F3SG-4SRB1600-25 |
Omron F3SG-4SRB1600-25 Safety Light Curtain - Technical Specifications
| Specification | Value |
|---|---|
| Application | Hand protection |
| Object Resolution | Opaque objects |
| Detection Capability | 25-mm dia |
| Beam Gap | 20 mm |
| Number Of Beams | 80 Beams |
| Protective Height | 1600 mm |
| Lens Size | 6.7 × 4.5 mm (W × H) |
| Operating Range | 0.3 to 20.0 m, 0.3 to 7.0 m |
| Light Source | Infrared LEDs, Wavelength: 870 nm |
| Startup Waiting Time | 3 s max. |
| Power Supply Voltage | SELV/PELV 24 VDC±20% (ripple p-p 10% max.) |
| Current Consumption | Emitter: 95 mA max.; Receiver: 107 mA max. |
| Safety Outputs Ossd | PNP/NPN |
| Degree Of Protection | IP65 and IP67 |
| Net Weight | 10 kg |
The Omron F3SG-4SRB1600-25 Safety Light Curtain provides 25 mm hand detection across a 1600 mm protective height. Its protective field uses 80 infrared beams arranged with a 20 mm beam gap to detect opaque objects entering a tall guarded machine access area. The specified operating range is 0.3 to 20.0 m or 0.3 to 7.0 m depending on configuration. It operates from a SELV/PELV 24 VDC ±20% supply and provides PNP/NPN safety outputs. Maximum current consumption is 95 mA for the emitter and 107 mA for the receiver. The enclosure is rated IP65 and IP67.
When choosing the F3SG-4SRB1600-25, the 25 mm detection capability, 1600 mm protective height, 20 mm beam gap, operating distance, and output configuration should be considered together. These specifications define the large vertical protection field and the electrical interface required by the machine safety system. A shorter configuration can provide the same hand-protection class where less vertical coverage is needed. For an 800 mm version using 40 beams with the same 20 mm beam spacing, see Omron F3SG-4SRB0800-25.
