Omron F3SJ-A0263P14 Safety Light Curtain

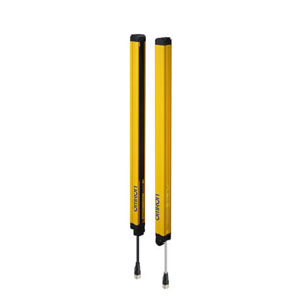

Omron F3SJ-A0263P14 is a Safety Light Curtain configured for finger protection across a 263 mm protective height. Its optical field contains 28 beam axes arranged with a 9 mm beam gap and uses an 870 nm infrared LED light source. The unit operates from 24 VDC and uses an M12 8-pin connector for electrical connection. PNP transistor outputs provide the safety interface, while the sensing range extends from 0.2 to 9 m. Within the F3SJ Series, the F3SJ-A0263P14 provides fine finger-level detection over a compact height. For small-object guarding requirements, compare finger protection safety light curtains available through Omron machine safety equipment.
| Brand | Omron |
| Product | Safety Light Curtain |
| Model Number | F3SJ-A0263P14 |
Omron F3SJ-A0263P14 Safety Light Curtain - Technical Specifications
| Specification | Value |
|---|---|
| Application | Finger protection |
| Detection Capability | Opaque objects |
| Beam Gap | 9 mm |
| Number Of Beams | 28 axis beam |
| Protective Height | 263 mm |
| Operating Range | 0.2 to 9 m |
| Connection Method | M12 Connector 8-pin |
| Light Source | Infrared LED (870 nm) |
| Output | PNP |
| Lens Diameter | 5 mm |
| Response Time Normal Mode On Off | 11 ms |
| Response Time Normal Mode Off On | 44 ms |
| Control Output Ossd | Two PNP transistor outputs Load current: 300 mA max. Residual voltage: 2 V max. Capacitive load: 2.2 µF Leakage current: 2 mA max. |
| Ambient Illuminance | Incandescent lamp: 3000 lx max. Sunlight: 10000 lx max. |
| Startup Waiting Time | 2 s max. |
| Power Supply Voltage | 24 VDC |
| Current Consumption | Receiver: 68 mA max.; Emitter: 76 mA max. |
| Auxiliary Output Non Safety Output | One PNP transistor output Load current: 300 mA max. Residual voltage: 2 V max. Leakage current: 1 mA max. |
| Protective Circuit | Output short-circuit protection Power supply reverse polarity protection |
| Insulation Resistance | 20 M? min. (at 500 VDC) |
| Ambient Temperature | Operating: -10 to 55°C (no icing), Storage: -30 to 70°C |
| Ambient Humidity | Operating: 35% to 85% (no condensation), Storage: 35% to 95% |
| Degree Of Protection | IP65 (IEC 60529) |
| Materials | Case: Aluminum, Zinc diecast Front window: PMMA resin (acrylic) Caps: ABS resin Cable: Oil-resistant PVC |
| Weight | Main Unit: Approx. 0.7 kg Package: Approx. 1.5 kg |
The Omron F3SJ-A0263P14 Safety Light Curtain provides finger protection across a 263 mm protective height. Its optical sensing field contains 28 beam axes arranged with a 9 mm beam gap and uses an 870 nm infrared LED light source. The operating range extends from 0.2 to 9 m, while the unit operates from 24 VDC. An M12 8-pin connector provides the electrical interface, and two PNP transistor outputs support loads up to 300 mA each. Output short-circuit and power-supply reverse-polarity protection are specified. The enclosure carries an IP65 protection rating.
When selecting the F3SJ-A0263P14, the 9 mm beam spacing, 263 mm protective height, PNP output type, M12 connection, and sensing distance should be considered together. These specifications define the fine optical field and its compatibility with the machine safety circuit. A hand-protection configuration uses wider beam spacing and a larger protected height where finger-level detection is not required. For an extended hand-protection model using a 15 mm beam gap and 1955 mm protective height, see Omron F3SJ-A1955P20.
