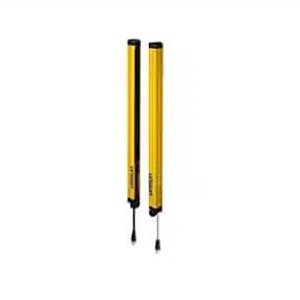

Omron F3SG-4RA0720-14 Safety Light Curtain
Omron F3SG-4RA0720-14 is a Safety Light Curtain providing 14 mm finger protection across a 720 mm protective height. Its optical field contains 71 infrared beams arranged with a 10 mm beam gap, creating dense sensing coverage for detecting opaque objects through the protected opening. The operating range is specified at 0.3 to 10.0 m or 0.3 to 3.0 m depending on configuration. It operates from a SELV/PELV 24 VDC supply and provides PNP/NPN safety outputs. Within the F3SG-R Series, the F3SG-4RA0720-14 combines fine detection with extended vertical coverage. For taller finger-protection zones, browse industrial finger safety light curtains from Omron industrial safety solutions.
| Brand | Omron |
| Product | Safety Light Curtain |
| Model Number | F3SG-4RA0720-14 |
Omron F3SG-4RA0720-14 Safety Light Curtain - Technical Specifications
| Specification | Value |
|---|---|
| Application | Finger protection |
| Object Resolution | Opaque objects |
| Detection Capability | 14-mm dia. |
| Beam Gap | 10 mm |
| Number Of Beams | 71 Beams |
| Protective Height | 720 mm |
| Lens Size | 5.2 × 3.4 (W × H) mm |
| Operating Range | 0.3 to 10.0 m, 0.3 to 3.0 m |
| Light Source | Infrared LEDs, Wavelength: 870 nm |
| Startup Waiting Time | 2 s max. |
| Power Supply Voltage | SELV/PELV 24 VDC±20% (ripple p-p 10% max.) |
| Current Consumption | Emitter: 65 mA max.;Receiver: 85 mA max. |
| Safety Outputs Ossd | PNP/NPN |
| Degree Of Protection | IP65 and IP67 |
| Net Weight | 2.1 kg |
The Omron F3SG-4RA0720-14 Safety Light Curtain provides 14 mm finger detection across a 720 mm protective height. Its protective field consists of 71 infrared beams positioned with a 10 mm beam gap, creating dense optical coverage for detecting opaque objects through the guarded opening. The operating range is specified at 0.3 to 10.0 m or 0.3 to 3.0 m depending on configuration. It operates from a SELV/PELV 24 VDC ±20% supply and provides PNP/NPN safety outputs. Maximum current consumption is 65 mA for the emitter and 85 mA for the receiver. The enclosure carries IP65 and IP67 ratings.
For model selection, the F3SG-4RA0720-14 should be matched to the required 14 mm detection size, 720 mm protective height, 10 mm beam spacing, sensing distance, and output configuration. These characteristics define the fine-protection field and vertical coverage available at the guarded machine opening. Other F3SG-R variants provide shorter finger-protection heights where the access area is smaller. For a 640 mm configuration using 63 beams with the same 14 mm detection class and 10 mm beam gap, see Omron F3SG-4RA0640-14.
