Omron F3SG-4RA1070-30 Safety Light Curtain

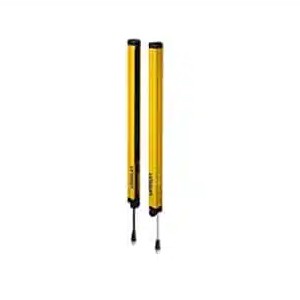

Omron F3SG-4RA1070-30 is a Safety Light Curtain providing 30 mm hand and arm detection across a 1070 mm protective height. Its protective field uses 52 infrared beams positioned with a 20 mm beam gap to detect opaque objects entering the guarded machine opening. The sensing range is specified at 0.3 to 20.0 m or 0.3 to 7.0 m depending on configuration. It operates from a SELV/PELV 24 VDC supply and provides PNP/NPN safety outputs for compatible control systems. Within the F3SG-R Series, the F3SG-4RA1070-30 provides protection beyond one metre in height. For extended machine openings, compare extended-height hand protection light curtains from Omron industrial safeguarding products.
| Brand | Omron |
| Product | Safety Light Curtain |
| Model Number | F3SG-4RA1070-30 |
Omron F3SG-4RA1070-30 Safety Light Curtain - Technical Specifications
| Specification | Value |
|---|---|
| Application | Hand and arm protection |
| Object Resolution | Opaque objects |
| Detection Capability | 30-mm dia. |
| Beam Gap | 20 mm |
| Number Of Beams | 52 Beams |
| Protective Height | 1070 mm |
| Lens Size | 7 mm |
| Operating Range | 0.3 to 20.0 m, 0.3 to 7.0 m |
| Light Source | Infrared LEDs, Wavelength: 870 nm |
| Startup Waiting Time | 2 s max. |
| Power Supply Voltage | SELV/PELV 24 VDC±20% (ripple p-p 10% max.) |
| Current Consumption | Emitter: 55 mA max.;Receiver: 80 mA max. |
| Safety Outputs Ossd | PNP/NPN |
| Degree Of Protection | IP65 and IP67 |
| Net Weight | 2.9 kg |
The Omron F3SG-4RA1070-30 Safety Light Curtain provides 30 mm hand and arm detection across a 1070 mm protective height. Its protective field consists of 52 infrared beams positioned with a 20 mm beam gap for detecting opaque objects entering the monitored opening. The specified operating range is 0.3 to 20.0 m or 0.3 to 7.0 m depending on configuration. It operates from a SELV/PELV 24 VDC ±20% supply and provides PNP/NPN safety outputs. Maximum current consumption is 55 mA for the emitter and 80 mA for the receiver. The enclosure carries IP65 and IP67 ingress-protection ratings.
When evaluating the F3SG-4RA1070-30, its 30 mm detection capability, 1070 mm protective height, 20 mm beam spacing, operating distance, and output type are the primary specifications to compare. These values determine how the sensing field fits a machine opening extending beyond one metre in height. Shorter models are available when the guarded access point requires less vertical coverage while maintaining the same protection class. For a 430 mm configuration with 20 beams and the same 20 mm beam gap, see Omron F3SG-4RA0430-30.
