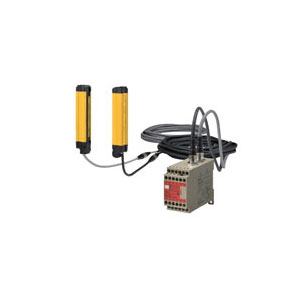

Omron F39-JGR3M-B88-D Safety Light Curtain
Omron F39-JGR3M-B88-D is a Safety Light Curtain connection component with 3PST-NO main contacts and an SPST-NC auxiliary contact. The unit operates from 24 VDC with a -15% to +10% supply-voltage tolerance and consumes a maximum of 1.7 W. This variant provides a receiver-side M12 connector with a 0.3 m cable for connection within the safety system. Maximum operating time is specified at 100 ms, while response time is 10 ms maximum. Within the F39 Series, the F39-JGR3M-B88-D provides the receiver-side configuration. For safety-system connectivity, explore industrial light curtain wiring accessories available across Omron machine safety products.
| Brand | Omron |
| Product | Safety Light Curtain |
| Model Number | F39-JGR3M-B88-D |
Omron F39-JGR3M-B88-D Safety Light Curtain - Technical Specifications
| Specification | Value |
|---|---|
| Main Contacts | 3PST-NO |
| Auxiliary Contact | SPST-NC |
| Type | For receiver M12 connector |
| Cable Length | 0.3 m |
| Rated Voltage | 1.7 W max |
| Operating Voltage Range | -15% to +10% of rated supply voltage |
| Power Consumption | 24 VDC |
| Operating Time | 100 ms max |
| Response Time | 10 ms max |
| Vibration Resistance | 10 to 55 Hz 0.35 mm single amplitude (0.7 mm double amplitude) |
| Shock Resistance | Destruction 300 m/s2 Malfunction 100 m/s2 |
| Ambient Operating Temperature | -10 to 55°C |
| Ambient Operating Humidity | 35 to 85% RH |
The Omron F39-JGR3M-B88-D Safety Light Curtain Component provides 3PST-NO main contacts and an SPST-NC auxiliary contact for compatible safety control arrangements. It operates from 24 VDC with a supply tolerance of -15% to +10% and has a maximum power consumption of 1.7 W. This version provides a receiver-side M12 connector with a 0.3 m cable. Maximum operating time is 100 ms, while maximum response time is 10 ms. Operating temperature is specified from -10 to 55°C.
Connection requirements are the primary consideration when selecting the F39-JGR3M-B88-D. Its receiver-side M12 connector distinguishes it from the corresponding emitter-side version, while both use a short 0.3 m cable. The contact arrangement, supply voltage, and connector location should be matched to the machine safety wiring layout. For the emitter-side M12 configuration, see Omron F39-JGR3M-B58-L.
