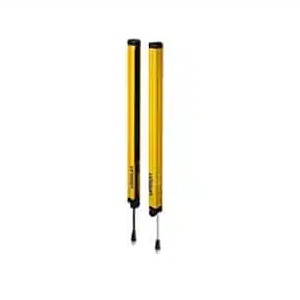

Omron F3SG-4RA0320-14 Safety Light Curtain
Omron F3SG-4RA0320-14 is a Safety Light Curtain configured for 14 mm finger protection across a 320 mm protective height. Its sensing field contains 31 infrared beams arranged with a 10 mm beam gap for detecting opaque objects through the guarded opening. The operating range is specified at 0.3 to 10.0 m or 0.3 to 3.0 m, depending on configuration. It operates from a SELV/PELV 24 VDC supply and provides PNP/NPN outputs. Within the F3SG-R Series, the F3SG-4RA0320-14 provides compact finger-level detection. For fine machine guarding, explore 14 mm finger protection light curtains from Omron machine safeguarding products.
| Brand | Omron |
| Product | Safety Light Curtain |
| Model Number | F3SG-4RA0320-14 |
Omron F3SG-4RA0320-14 Safety Light Curtain - Technical Specifications
| Specification | Value |
|---|---|
| Application | Finger protection |
| Object Resolution | Opaque objects |
| Detection Capability | 14-mm dia. |
| Beam Gap | 10 mm |
| Number Of Beams | 31 Beams |
| Protective Height | 320 mm |
| Lens Size | 5.2 × 3.4 (W × H) mm |
| Operating Range | 0.3 to 10.0 m, 0.3 to 3.0 m |
| Light Source | Infrared LEDs, Wavelength: 870 nm |
| Startup Waiting Time | 2 s max. |
| Power Supply Voltage | SELV/PELV 24 VDC±20% (ripple p-p 10% max.) |
| Current Consumption | Emitter: 55 mA max.;Receiver: 75 mA max. |
| Safety Outputs Ossd | PNP/NPN |
| Degree Of Protection | IP65 and IP67 |
| Net Weight | 1.1 kg |
The Omron F3SG-4RA0320-14 Safety Light Curtain provides 14 mm finger detection across a 320 mm protective height. Its sensing field uses 31 infrared beams arranged with a 10 mm beam gap, giving closely spaced optical coverage for detecting opaque objects. The specified operating range is 0.3 to 10.0 m or 0.3 to 3.0 m depending on configuration. Power is supplied at SELV/PELV 24 VDC ±20%, while PNP/NPN outputs provide the electrical interface with the machine safety system. Emitter current is specified at 55 mA maximum and receiver current at 75 mA maximum. The enclosure carries IP65 and IP67 protection ratings.
For selection, the F3SG-4RA0320-14 should be evaluated by its 14 mm detection capability, 320 mm protective height, 10 mm beam spacing, available sensing distance, and PNP/NPN output configuration. These specifications define the object size detected, vertical protected area, and electrical compatibility with the safety control architecture. When a taller finger-protection field is required while retaining the same 10 mm beam gap, a higher protective-height model can be considered. For a 400 mm configuration using 39 beams and the same 14 mm finger-detection class, see Omron F3SG-4RA0400-14.
