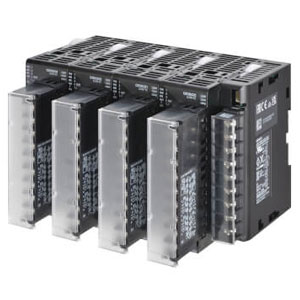

Omron EJ1N-TC2A-CNB Modular Temperature Controller
The Omron EJ1N-TC2A-CNB Temperature Controller is a compact and precise Modular Temperature Controller designed for stable, fast-response industrial temperature control. Its Module type design supports a versatile operates on 24 VDC with an allowable range of 85 to 110% of the power supply voltage, it provides ON/OFF or 2-PID control with auto-tuning and self-tuning for consistent temperature stability. The controller features Current output 2-points, , Transistor output 2-points and Screw terminal (M3) wiring for easy panel integration. Manufactured by Omron, part of the Omron Temperature Controller ecosystem within the Omron EJ1N Series.
| Brand | Omron |
| Product Type | Temperature Controller |
| Model Number | EJ1N-TC2A-CNB |
Omron EJ1N-TC2A-CNB Temperature Controller - Technical Specifications
| Specification | Value |
|---|---|
| Shape | Module type |
| Fixed/Programmable | Fixed |
| Power supply voltage | 24 VDC |
| Operating voltage range | 85 to 110% of the power supply voltage |
| Power consumption | 2.5 W max. (At maximum load) |
| Control method | ON/OFF or 2-PID control with auto-tuning and self-tuning |
| Number of input points | 2 point |
| Input Type/Temperature input | Thermocouple: K, J, T, E, L, U, N, R, S, B, W/C, PLβ ‘ Platinum resistance thermometer: Pt100, JPt100 Infrared Thermosensor: 10 to 70 β, 60 to 120 β, 115 to 165 β, 140 to 260 β |
| Control output 1 | Current output 2-points |
| Control output 2 | Transistor output 2-points |
| Insulation resistance | 20 MΞ© min. (at 500 VDC) |
| Dielectric strength | 600 VAC 50/60 Hz for 1 min (Between current-carrying terminals of different polarity) |
| Vibration resistance | Malfunction: 10 to 55 Hz, 20 m/s2 for 2 h each in X, Y, and Z directions |
| Shock resistance | Malfunction: 150 m/s2, in each 6 directions 3 times |
| Ambient temperature (Operating) | -10 to 55 β (with no freezing or condensation) For 3-year warranty: -10 to 50 β (with no freezing or condensation) |
| Ambient temperature (Storage) | -25 to 65 β (with no freezing or condensation) |
| Ambient humidity (Operating) | 25 to 85 % (with no freezing or condensation) |
| Degree of protection | Rear case: IP20, Terminal section: IP00 |
| Terminal type | Screw terminal (M3) |
| Weight | Controller: Approx. 210 g, Adapter: Approx. 4 g Γ 2 |
The Omron EJ1N-TC2A-CNB is frequently assessed alongside other units in the EJ1 Modular Temperature Controller group because they share comparable sensor inputs, panel depth behaviour, and loop-control characteristics. Engineers often evaluate Omron E5CWL-R1P (1/16 DIN 48 Γ 48 Γ 60, ON/OFF or 2-PID control, 100 to 240 VAC, 50/60 Hz, Relay output, 7-segment digital display and individual indicators; Character height: E5CSL: 21.7 mm, E5CWL: 16.2 mm (PV), E5EWL: 20 mm (PV)), Omron E5CC-RW2DUM-000 (DIN48 x 48, ON/OFF or 2-PID control, 24 VAC (50/60 Hz) 24 VDC, Relay output, 11-segment digital display), and Omron E5AC-CQ2ASM-009 (DIN 96 x 96, ON/OFF or 2-PID control, 100 to 240 VAC (50/60 Hz), Linear current output, 11-segment digital display) when selecting a controller that fits panel wiring, SSR/relay load stages, and enclosure thermal limits.
