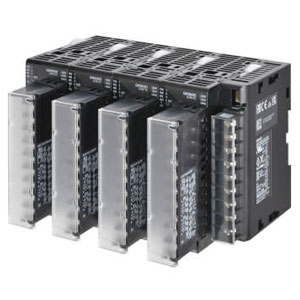

Omron EJ1C-EDUC-NFLK Modular Temperature Controller
The Omron EJ1C-EDUC-NFLK Temperature Controller is a compact and precise Modular Temperature Controller designed for stable, fast-response industrial temperature control. Its Module type design supports a versatile operates on 24 VDC with an allowable range of 85 to 110% of the power supply voltage and Detachable connector for easy panel integration. Manufactured by Omron, part of the Omron Temperature Controller ecosystem within the Omron EJ1C Series.
| Brand | Omron |
| Product | Temperature Controllers |
| Model Number | EJ1C-EDUC-NFLK |
Omron EJ1C-EDUC-NFLK Temperature Controller - Technical Specifications
| Specification | Value |
|---|---|
| Shape | Module type |
| Power supply voltage | 24 VDC |
| Operating voltage range/ Allowable voltage variable range | 85 to 110% of the power supply voltage |
| Insulation resistance | 20 MΩ min. (at 500 VDC) |
| Dielectric strength | 600 VAC, 50/60 Hz for 1 min between current-carrying terminals of different polarity |
| Vibration resistance | 10 to 55 Hz, 20 m/s2 for 2 hours each in X, Y, and Z directions |
| Shock resistance | 150 m/s2, 3 times each in 6 directions |
| Ambient temperature (Operating) | −10°C to 55°C |
| Ambient temperature (Storage) | −25°C to 65°C (with no icing or condensation) |
| Ambient humidity (Operating) | 25% to 85% (with no condensation) |
| Degree of protection | IP20 |
| Terminal type | Detachable connector |
| Weight | Controller: Approx. 210 g, Adapter: Approx. 4 g × 2 |
The Omron EJ1C-EDUC-NFLK is frequently assessed alongside other units in the EJ1 Modular Temperature Controller group because they share comparable sensor inputs, panel depth behaviour, and loop-control characteristics. Engineers often evaluate Omron E5CD-QX2D6M-002 (48 × 48 mm, ON/OFF or 2-PID control with auto-tuning, 24 VAC, 50/60 Hz; 24 VDC, Voltage output, 11-segment digital display), Omron E5GC-CX2ACM-015 (DIN 48 x 24, ON/OFF or 2-PID control with auto-tuning, 24 VAC, 50/60 Hz; 24 VDC, Linear current output, 11-segment digital display), and Omron E5CC-QX2ASM-007 (DIN48 x 48, ON/OFF or 2-PID control, 100 to 240 VAC (50/60 Hz), Voltage output (for driving SSR), 11-segment digital display) when selecting a controller that fits panel wiring, SSR/relay load stages, and enclosure thermal limits. Reviewing shape, control method, supply voltage class, output structure, and indication style builds a clearer.
