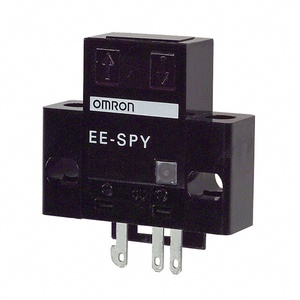

Omron EE-SPY312 Photomicrosensor
The Omron EE-SPY312 Photomicrosensor offers Convergent reflective, Vertical type, 2 to 5 mm Sensing distance, NPN Output, Special connector, 5 to 24 VDC Power supply voltage, Dark-ON mode. Manufactured by Omron under the Omron Photoelectric Sensors category, this model belongs to the Omron EE Series.
| Brand | Omron |
| Product Type | Photomicrosensor |
| Model Number | EE-SPY312 |
Omron EE-SPY312 Photomicrosensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Vertical type |
| Luminous method | Modulated |
| Sensing method | Convergent reflective |
| Sensing distance | 2 to 5 mm |
| Control output (Output type) | NPN |
| Control output (Residual voltage) | at 80 mA load current: 1.0 V max. at 10 mA load current: 0.4 V max. |
| Operation mode | Dark-ON |
| Connection method | Special connector |
| Current consumption | Average value: 15 mA max. Peak: 50 mA max. |
| Control output (Load current) | 80 mA max. |
| Indicator | Light indicator (red) |
| Power supply voltage | 5 to 24 VDC |
| Material | Case: Polycarbonate (PC) Holder: Polybutylene terephthalate (PBT) |
| Degree of protection | IP50 |
| Ambient temperature (Operating) | -10 to 55 β |
| Ambient temperature (Storage) | -25 to 65 β |
| Ambient humidity (Operating) | 5 to 85 % |
| Ambient humidity (Storage) | 5 to 95 % |
| Shock resistance | Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions |
| Vibration resistance | Destruction: 10 to 50 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h |
The Omron EE-SPY312 is a vertical light convergent reflective photomicrosensor designed for short-range, high-precision object detection. It operates within a 2 to 5 mm sensing range, optimized for reflective targets such as white paper or flat surfaces.
Featuring a modulated light source for noise immunity, the sensor operates in Dark-ON mode and delivers an NPN voltage output with minimal residual voltage. Its peak current is 50 mA, with a low average consumption of 15 mA, making it energy-efficient. A red LED indicator provides clear feedback during operation, and the connector-type design ensures easy installation.
Encased in durable polycarbonate and PBT housing, the EE-SPY312 is built to withstand industrial environments. With an IP50 rating and resistance to vibration and shock, it functions reliably in temperatures from -10Β°C to 55Β°C. Ideal for label detection, edge alignment, and small object positioning.
