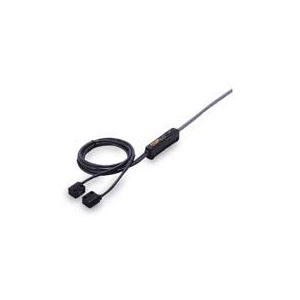

Omron EE-SPW321-A Photomicrosensor
The Omron EE-SPW321-A Photomicrosensor offers Through-beam type, 300 mm Sensing distance, NPN Output, Pre-wired models, 12 to 24 VDC Power supply voltage, Dark-ON mode. Manufactured by Omron under the Omron Photoelectric Sensors category, this model belongs to the Omron EE Series.
| Brand | Omron |
| Product | Photomicro Sensors |
| Model Number | EE-SPW321-A |
Omron EE-SPW321-A Photomicrosensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing Method | Through-beam type |
| Sensing Distance | 300 mm |
| Power Supply Voltage | 12 to 24 VDC |
| Control Output (Output Type) | NPN |
| Connection Method | Pre-wired models |
| Cable Length | 2 m (Cable length from emitter to amplifier: 1 m) |
| Current Consumption | Average value: 30 mA |
| Operation Mode | Dark-ON |
| Response Time | Operate or reset: 1 ms max. |
| Control Output (Residual Voltage) | at 100 mA load current: 1 V max. |
| Control Output (Load Current) | 101 mA max. |
| Indicator | Light indicator (red LEDs on Sensor and Amplifier) |
| Ambient Temperature (Operating) | -20 to 55 β |
| Ambient Humidity (Operating) | 5 to 85 % |
| Vibration Resistance | Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h |
| Shock Resistance | Destruction: 500 m/s2 |
| Degree Of Protection | IP64 |
| Material | Case: ABS resin Lens: Acrylic resin |
The Omron EE-SPW321-A is a high-precision through-beam photomicrosensor with an integrated amplifier and pre-wired cable. Designed for accurate object detection up to 300 mm, it features a 1 m cable from emitter to amplifier and a total 2 m connection length, making it easy to install in control panels and compact machines.
Operating in Dark-ON mode, the sensor uses a modulated infrared light source and outputs an NPN open collector signal. It supports up to 101 mA load current with a residual voltage of 1 V max. The red LED indicators on both the sensor and amplifier help in quick diagnostics. With an average current consumption of 30 mA and a 1 ms response time, it performs reliably in fast-paced automation setups.
Built with an ABS resin body and acrylic lens, the EE-SPW321-A offers IP64 protection and withstands harsh industrial conditions, including temperatures from -20Β°C to 55Β°C.
