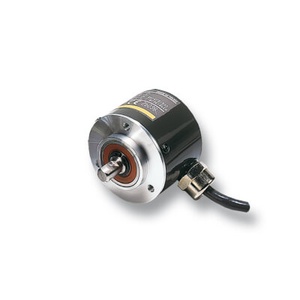

E6C3-CWZ5GH 3600P/R 2M - Omron Rotary Encoder 3600 PPR
Technical Specifications of E6C3-CWZ5GH 3600P/R 2M Omron Rotary Encoder 3600 PPR
| Spec | Value |
|---|---|
| Brand | Omron |
| Product Type | Rotary Encoders |
| Product | E6C3-CWZ5GH 3600P/R 2M |
Omron Rotary Encoder 3600 PPR E6C3-CWZ5GH 3600P/R 2M Technical Specifications:
| Specification | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 3600 P/R |
| Control output | Complementary output |
| Connection method | Pre-wired models (Cable length: 2 m) |
| Diameter | 50 mm dia |
| Power supply voltage | 12 to 24 VDC (-10% to +15%) Ripple (p-p) 5% max. |
| Current consumption | 100 mA max. |
| Inrush current | Approx. 9 A (0.1 ms) |
| Ambient temperature | Operating: -10 to 70 ℃ (with no icing); Storage: -25 to 85 ℃ (with no icing) |
| Degree of protection | IEC: IP65; Company standard: Oil resistance |
| Material | Case: Aluminum, Main Unit: Aluminum, Shaft: SUS303 |
| Accessories | Instruction manual |
🛠️ Get Quotes Instantly from Omron Vendors
The Omron Rotary Encoder 3600 PPR E6C3-CWZ5GH 3600P/R 2M is a great choice for precise motion control. It provides 3600 pulses per rotation (PPR), ensuring accurate results in industrial applications. With a 50 mm diameter and a 2-meter pre-wired cable, it is easy to install in different systems. The encoder works with a 12 to 24 VDC power supply and uses a maximum of 100 mA, making it efficient and reliable. It features A, B, and Z output phases, a 125 kHz response frequency, and a complementary output for smooth and fast performance. Whether you’re searching for a 3600 PPR encoder, 3600p encoder, encoder 3600 PPR, IndMALL Automation offers the E6C3-CWZ5GH 3600P/R rotary encoder at competitive prices.
