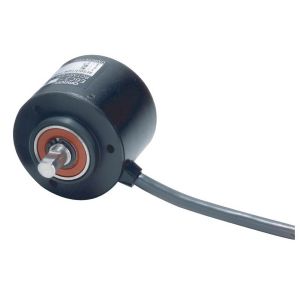

Omron E6C3-CWZ3EH 360P/R 2M Rotary Encoder
The Omron E6C3-CWZ3EH 360P/R 2M Rotary Encoder is an Incremental Shaft model engineered with 360 P/R resolution for accurate speed and position detection in automation systems. It delivers A/B/Z, NPN voltage output configuration and includes a Pre-wired model, 2 m Cable length connection for flexible installation and stable performance. The durable 50 mm dia. housing ensures mechanical strength and precision alignment, operating on 5 to 12 VDC power supply voltage to maintain reliable signal output. Its compact structure supports long operational life and dependable performance in industrial environments. Manufactured by Omron, part of the Omron Rotary Encoders portfolio, available under the Omron E6C3-C Series.
| Brand | Omron |
| Product Type | Rotary Encoders |
| Model Number | E6C3-CWZ3EH 360P/R 2M |
Omron E6C3-CWZ3EH 360P/R 2M Rotary Encoder - Technical Specifications
| Specification | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 360 P/R |
| Output phases | A, B and Z |
| Control output | NPN voltage output |
| Connection method | Pre-wired model, 2 m Cable length |
| Diameter | 50 mm dia. |
| Power supply voltage | 5 to 12 VDC (-5% to +10%) Ripple (p-p) 5% max. |
| Current consumption | 100 mA max. |
| Max. response frequency | 125 kHz (65 kHz when using phase Z reset) |
| Ambient temperature | Operating: -10 to 70 β (with no icing) Storage: -25 to 85 β (with no icing) |
| Degree of protection | IEC: IP65 |
| Material | Case: Aluminum alloy |
| Weight | -- |
| Accessories | Instruction manual |
The Omron E6C3-CWZ3EH 360P/R 2M is part of the E6C3 Rotary Encoder range and is typically evaluated along with other Omron rotary encoders during panel design and motion control planning. Engineers compare related models such as Omron E6C3-CWZ3XH 1500P/R 2M (Incremental Shaft, 1500 P/R resolution, A, -A, B, -B, Z and -Z, Line driver output, 2 m Cable length), Omron E6C3-CWZ3XH 600P/R 1M (Incremental Shaft, 600 P/R resolution, A, -A, B, -B, Z and -Z, Line driver output, 1 m Cable length), and Omron E6C3-CWZ5GH 1000P/R 2M (Incremental Shaft, 1000 P/R resolution, A, B and Z, Complementary output, 2 m Cable length) to identify the best fit for indexing applications, shaft feedback, conveyor monitoring, and rotational tracking functions. Reviewing shaft type, resolution, output phase coding, control output stage, connector format, and cable arrangement helps ensure proper alignment with PLC high-speed inputs and mechanical coupling components. These compatible Omron encoder variants enable consistent wiring layouts, predictable pulse behaviour, connector alignment, and uniform signal performance across automation equipment. The E6C3-CWZ3EH 360P/R 2M integrates cleanly into modern industrial systems that require accurate, stable, and long-life rotary feedback devices, and is well suited for applications where a dependable Omron Encoders ensures reliable operation in demanding environments.
