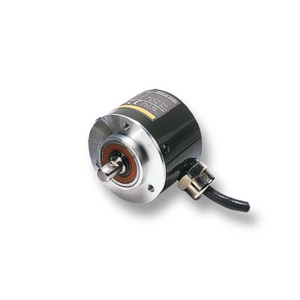

Omron E6C3-AG5C-C 360P/R 2M Rotary Encoder
The Omron E6C3-AG5C-C 360P/R 2M Rotary Encoder is an Absolute Shaft model offering a 360 P/R resolution for precise position detection in automation systems. It provides a NPN output configuration, designed as a Pre-wired model, 2 m Cable length to support easy installation and reliable signal transmission. Built with a 50 mm dia housing, it operates on 12 to 24 VDC power supply voltage, ensuring stable and accurate output during continuous operation. Engineered for high performance and durability, itβs ideal for applications requiring dependable rotational feedback and compact design. Manufactured by Omron, part of the Omron Rotary Encoders family, available under the Omron E6C3-A Series.
| Brand | Omron |
| Product Type | Rotary Encoders |
| Model Number | E6C3-AG5C-C 360P/R 2M |
Omron E6C3-AG5C-C 360P/R 2M Rotary Encoder - Technical Specifications
| Specification | Value |
|---|---|
| Encoding Method | Absolute Shaft model |
| Resolution | 360 P/R |
| Control output | NPN open collector |
| Connection method | Pre-wired model, 2 m Cable length |
| Diameter | 50 mm dia |
| Power supply voltage | 12 to 24 VDC (-10% to +15%) Ripple (p-p) 5% max. |
| Current consumption | 70 mA max. |
| Inrush current | Approx. 6 A (0.8 ms) |
| Ambient temperature | Operating: -10 to 70 β (with no icing); Storage: -25 to 85 β (with no icing) |
| Degree of protection | IEC: IP65; Company standard: Oil resistance |
| Material | Case: Aluminum, Main Unit: Aluminum, Shaft: SUS303 |
| Accessories | Instruction manual |
The Omron E6C3-AG5C-C 360P/R 2M is part of the E6C3 Rotary Encoder lineup and is frequently evaluated alongside other Omron rotary encoders during machine design and maintenance planning. Engineers often compare related models such as Omron E6C3-AN5B 32P/R 2M (Absolute Shaft, 32 P/R resolution, Binary code, PNP output, 2 m Cable length), Omron E6C3-AG5C 720P/R 1M (Absolute Shaft, 720 P/R resolution, Gray code, NPN output, 1 m Cable length), and Omron E6C3-AN1E 256P/R 1M (Absolute Shaft, 256 P/R resolution, Binary code, Voltage output, 1 m Cable length) when selecting an encoder for conveyor positioning, shaft feedback, indexing systems, rotary tracking, or general motion monitoring tasks. Considering differences in shaft type, resolution, output coding, drive stage, signal format, wiring, and cable length helps match each encoder to PLC high-speed inputs and mechanical coupling points. These compatible Omron encoder variants also help maintenance teams maintain consistent wiring patterns, predictable pulse generation, connector alignment, and uniform installation layouts across different stations. The E6C3-AG5C-C 360P/R 2M fits naturally into automation systems that require a stable, durable, and accurate feedback device, and is well-suited for industrial environments where a reliable Omron Encoders ensures dependable long-term operation.
