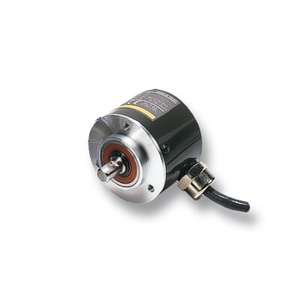

Omron E6C3-AG5C 360P/R 2M Rotary Encoder
The Omron E6C3-AG5C 360P/R 2M Rotary Encoder is an Absolute Shaft model offering a 360 P/R resolution for precise position detection in automation systems. It provides a Gray code with NPN output configuration, designed as a Pre-wired model, 2 m Cable length to support easy installation and reliable signal transmission. Built with a 50 mm dia. housing, it operates on 12 to 24 VDC power supply voltage, ensuring stable and accurate output during continuous operation. Engineered for high performance and durability. Manufactured by Omron, part of the Omron Rotary Encoders family, available under the Omron E6C3-A Series.
| Brand | Omron |
| Product Type | Rotary Encoders |
| Model Number | E6C3-AG5C 360P/R 2M |
Omron E6C3-AG5C 360P/R 2M Rotary Encoder - Technical Specifications
| Specification | Value |
|---|---|
| Encoding Method | Absolute Shaft model |
| Resolution | 360 P/R |
| Output code | Gray code |
| Control output | NPN open collector |
| Connection method | Pre-wired model, 2 m Cable length |
| Diameter | 50 mm dia. |
| Power supply voltage | 12 to 24 VDC (-10% to +15%) Ripple (p-p) 5% max. |
| Current consumption | 70 mA max. |
| Inrush current | Approx. 6 A (0.8 ms) |
| Logic | Negative logic (high = 0, low = 1) |
| Ambient temperature | Operating: -10 to 70 β (with no icing) Storage: -25 to 85 β (with no icing) |
| Degree of protection | IEC: IP65 |
| Material | Case: Aluminum |
| Accessories | Instruction manual |
The Omron E6C3-AG5C 360P/R 2M is part of the E6C3 Rotary Encoder lineup and is frequently evaluated alongside other Omron rotary encoders during machine design and maintenance planning. Engineers often compare related models such as Omron E6C3-CWZ5GH 3600P/R 2M (Incremental Shaft, 3600 P/R resolution, Complementary output, 2 m Cable length), Omron E6C3-AG5B 720P/R 1M (Absolute Shaft, 720 P/R resolution, Gray code, PNP output, 1 m Cable length), and Omron E6C3-AG5C 1024P/R 1M (Absolute Shaft, 1024 P/R resolution, NPN output, 2 m Cable length) when selecting an encoder for conveyor positioning, shaft feedback, indexing systems, rotary tracking, or general motion monitoring tasks. Considering differences in shaft type, resolution, output coding, drive stage, signal format, wiring, and cable length helps match each encoder to PLC high-speed inputs and mechanical coupling points. These compatible Omron encoder variants also help maintenance teams maintain consistent wiring patterns, predictable pulse generation, connector alignment, and uniform installation layouts across different stations. The E6C3-AG5C 360P/R 2M fits naturally into automation systems that require a stable, durable, and accurate feedback device, and is well-suited for industrial environments where a reliable Omron Encoders ensures dependable long-term operation.
