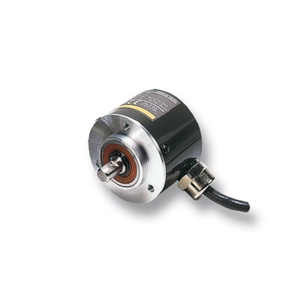

The Omron E6C3-AB5C 12P/R 1M Rotary Encoder is an absolute shaft encoder designed to provide defined rotational position information for industrial machine control. It combines 12 P/R resolution with BCD code and NPN output, allowing compatible control equipment to identify the encoder position from its coded output. The unit operates from 12 to 24 VDC and uses a 50 mm diameter housing with a 1 m pre-wired cable for connection to the machine control system. Its BCD coding and 12-position configuration distinguish this model from binary and Gray-code variants within the absolute encoder family. The E6C3-AB5C 12P/R belongs to the E6C3-A absolute encoder series. It forms part of the BCD absolute encoder range within Omron position sensing products.
Operating: -10 to 70 ℃ (with no icing)
Storage: -25 to 85 ℃ (with no icing)
Degree of protection
IEC: IP65
Material
Case: Aluminum
Accessories
Instruction manual
Weight
Package: Approx. 300 g
The Omron E6C3-AB5C 12P/R 1M is part of the E6C3 Rotary Encoder lineup and is frequently evaluated alongside other Omron rotary encoders during machine design and maintenance planning. Engineers often compare related models such as Omron E6C3-AG5C 1024P/R 1M (Absolute Shaft, 1024 P/R resolution, NPN output, 2 m Cable length) and Omron E6C3-CWZ5GH 3600P/R 2M (Incremental Shaft, 3600 P/R resolution, Complementary output, 2 m Cable length) when selecting an encoder for conveyor positioning, shaft feedback, indexing systems, rotary tracking, or general motion monitoring tasks. Considering differences in shaft type, resolution, output coding, drive stage, signal format, wiring, and cable length helps match each encoder to PLC high-speed inputs and mechanical coupling points. These compatible Omron encoder variants also help maintenance teams maintain consistent wiring patterns, predictable pulse generation, connector alignment, and uniform installation layouts across different stations. The E6C3-AB5C 12P/R 1M fits naturally into automation systems that require a stable, durable, and accurate feedback device, and is well-suited for industrial environments where a reliable Omron Encoders ensures dependable long-term operation.
