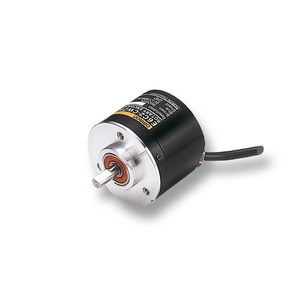

E6C2-CWZ6C 1000P/R 2M - Omron 24VDC Rotary Encoder
Technical Specifications of E6C2-CWZ6C 1000P/R 2M Omron 24VDC Rotary Encoder
| Spec | Value |
|---|---|
| Brand | Omron |
| Product Type | Rotary Encoders |
| Product | E6C2-CWZ6C 1000P/R 2M |
π οΈ Get Quotes Instantly from Omron Vendors
Omron 24VDC Rotary Encoder E6C2-CWZ6C 1000P/R 2M Technical Specifications:
| Specification | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 1000 P/R |
| Output phases | A, B, and Z |
| Control output | NPN open collector |
| Connection method | Pre-wired models (Cable length: 2 m) |
| Diameter | 50 mm dia |
| Power supply voltage | 5 to 24 VDC (-5% to +15%) Ripple (p-p) 5% max. |
| Current consumption | 80 mA max. |
| Max. response frequency | 100 kHz |
| Ambient temperature | Operating: -10 to 70 β (with no icing); Storage: -25 to 85 β (with no icing) |
| Degree of protection | IEC: IP64; Company standard: Oil resistance |
| Material | Case: ABS; Main Unit: Aluminum; Shaft: SUS420J2 |
| Weight | Package: Approx. 400 g |
| Accessories | Instruction manual |
The Omron E6C2-CWZ6C 1000P/R 2M Rotary Encoder is a high-performance incremental encoder, delivering precise motion control for demanding industrial applications. With a 1000 pulses per rotation (P/R) resolution and a compact 40 mm diameter, it provides accurate position and speed feedback. The encoder comes pre-wired with a 2-meter cable and operates on a 5 to 24 VDC power supply, ensuring broad compatibility with industrial systems. Its NPN open collector output supports A, B, and Z signal phases, making it suitable for diverse control setups. Designed for durability, this Omron 24VDC rotary encoder handles radial loads up to 50 N and thrust loads up to 30 N, withstanding challenging conditions. Rated IP64, it offers reliable protection against dust and splashes. For robust and precise automation solutions, the E6C2-CWZ6C 1000P/R 2M encoder is an ideal choice.
