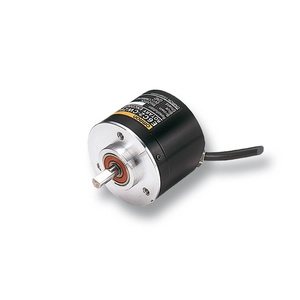

Omron E6C2-CWZ5B 50P/R 2M Rotary Encoder
The Omron E6C2-CWZ5B 50P/R 2M Rotary Encoder is an Incremental Shaft type designed with 50 P/R resolution for precise position and motion control. It supports A/B/Z, PNP output configuration and Pre-wired model, 2 m Cable length for versatile installation in automation systems. The robust 50 mm dia. housing provides reliable durability in compact setups, operating on 12 to 24 VDC power supply voltage to ensure stable signal transmission. Manufactured by Omron, part of the Omron Rotary Encoders portfolio, available under the Omron E6C2-C Series.
| Brand | Omron |
| Product Type | Rotary Encoders |
| Model Number | E6C2-CWZ5B 50P/R 2M |
Omron E6C2-CWZ5B 50P/R 2M Rotary Encoder - Technical Specifications
| Specification | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 50 P/R |
| Output phases | A, B and Z |
| Control output | PNP open collector |
| Connection method | Pre-wired model, 2 m Cable length |
| Diameter | 50 mm dia. |
| Power supply voltage | 12 to 24 VDC (-10% to +15%) Ripple (p-p) 5% max. |
| Current consumption | 100 mA max. |
| Max. response frequency | 100 kHz |
| Ambient temperature | Operating: -10 to 70 β (with no icing) Storage: -25 to 85 β (with no icing) |
| Degree of protection | IEC: IP64 |
| Material | Case: Zinc alloy |
| Weight | Package: Approx. 400 g |
| Accessories | Instruction manual |
The Omron E6C2-CWZ5B 50P/R 2M is part of the Rotary Encoder range and is typically evaluated along with other Omron rotary encoders during panel design and motion control planning. Engineers compare related models such as Omron E6C2-CWZ5B 500P/R 2M (Incremental Shaft, 500 P/R resolution, A, B and Z, PNP output, 2 m Cable length), Omron E6C2-CWZ6C 720P/R 2M (Incremental Shaft, 720 P/R resolution, A, B and Z, NPN voltage output, 2 m Cable length), and Omron E6C2-CWZ3E 200P/R 2M (Incremental Shaft, 200 P/R resolution, A, B and Z, NPN voltage output, 2 m Cable length) to identify the best fit for indexing applications, shaft feedback, conveyor monitoring, and rotational tracking functions. Reviewing shaft type, resolution, output phase coding, control output stage, connector format, and cable arrangement helps ensure proper alignment with PLC high-speed inputs and mechanical coupling components. These compatible Omron encoder variants enable consistent wiring layouts, predictable pulse behaviour, connector alignment, and uniform signal performance across automation equipment. The E6C2-CWZ5B 50P/R 2M integrates cleanly into modern industrial systems that require accurate, stable, and long-life rotary feedback devices, and is well suited for applications where a dependable Omron Encoders ensures reliable operation in demanding environments.
