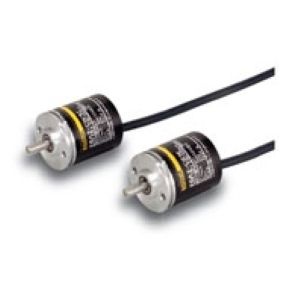

Omron E6A2-CS3E 10P/R 2M Rotary Encoder
The Omron E6A2-CS3E 10P/R 2M Rotary Encoder is an Incremental Shaft type with 10 P/R resolution. It delivers Phase A, Voltage output configuration, designed as Pre-wired model, 2 m Cable length for flexible installation. Compact with a 25 mm dia. housing, it operates on 5 to 12 VDC power supply voltage, ensuring stable performance in precision automation systems. Manufactured by Omron, part of the Omron Rotary Encoders range, available under the Omron E6A2-C Series.
| Brand | Omron |
| Product Type | Rotary Encoders |
| Model Number | E6A2-CS3E 10P/R 2M |
Omron E6A2-CS3E 10P/R 2M Rotary Encoder - Technical Specifications
| Specification | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 10 P/R |
| Output phases | Phase A |
| Control output | Voltage output |
| Connection method | Pre-wired model, 2 m Cable length |
| Diameter | 25 mm dia. |
| Power supply voltage | 5 to 12 VDC (-5% to +10%) Ripple (p-p) 5% max. |
| Current consumption | 30 mA max. |
| Max. response frequency | 30 kHz |
| Ambient temperature | Operating: -10 to 55 β (with no icing) Storage: -25 to 80 β (with no icing) |
| Degree of protection | IEC: IP50 |
| Material | Case: Aluminum alloy |
| Weight | -- |
| Accessories | Instruction manual, Couplings, Hex-head spanner |
The Omron E6A2-CS3E 10P/R 2M is part of the E6A2 Rotary Encoder range and is typically evaluated along with other Omron rotary encoders during panel design and motion control planning. Engineers compare related models such as Omron E6A2-CS5C 10P/R 0.5M (Incremental Shaft, 10 P/R resolution, Phase A, NPN output, 0.5 m Cable length), Omron E6A2-CW3C 200P/R 2M (Incremental Shaft, 200 P/R resolution, Phase A/B, NPN output, 2 m Cable length), and Omron E6A2-CW3E 100P/R 0.5M (Incremental Shaft, 100 P/R resolution, Phase A/B, Voltage output, 0.5 m Cable length) to identify the best fit for indexing applications, shaft feedback, conveyor monitoring, and rotational tracking functions. Reviewing shaft type, resolution, output phase coding, control output stage, connector format, and cable arrangement helps ensure proper alignment with PLC high-speed inputs and mechanical coupling components. These compatible Omron encoder variants enable consistent wiring layouts, predictable pulse behaviour, connector alignment, and uniform signal performance across automation equipment. The E6A2-CS3E 10P/R 2M integrates cleanly into modern industrial systems that require accurate, stable, and long-life rotary feedback devices, and is well suited for applications where a dependable Omron Encoders ensures reliable operation in demanding environments.
