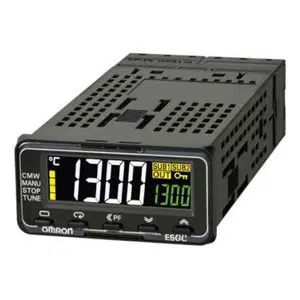

Omron E5GN-Q1T Digital Temperature Controller
The Omron E5GN-Q1T Temperature Controller is a compact and precise Basic-type Digital Temperature Controller designed for stable, fast-response industrial temperature control. Its 48 Γ 24 mm design supports a versatile operates on 100 to 240 VAC, 50/60 Hz with an allowable range of 85% to 110% of rated supply voltage , it provides ON/OFF control or 2-PID control (with auto-tuning) for consistent temperature stability. The controller features Voltage output (for driving SSR), Digital setting using front panel keys, 11-segment digital display for improved visibility, and Screw terminal block wiring for easy panel integration. Manufactured by Omron, part of the Omron Temperature Controller ecosystem within the Omron E5GN Series.
| Brand | Omron |
| Product Type | Temperature Controller |
| Model Number | E5GN-Q1T |
Omron E5GN-Q1T Temperature Controller - Technical Specifications
| Specification | Value |
|---|---|
| Shape | 48 Γ 24 mm |
| Power supply voltage | 100 to 240 VAC, 50/60 Hz |
| Operating voltage range | 85% to 110% of rated supply voltage |
| Power consumption | 100 to 240 VAC: 5.5 VA (max.) |
| Control method | ON/OFF control or 2-PID control (with auto-tuning) |
| Input Type/Temperature input | Thermocouple: K, J, T, E, L, U, N, R, S, B, W, or PL II Platinum resistance thermometer: Pt100 or JPt100 Infrared temperature sensor (ES1B): 10 to 70Β°C, 60 to 120Β°C, 115 to 165Β°C, or 140 to 260Β°C Voltage input: 0 to 50 mV |
| Control output 1 | Voltage output (for driving SSR) |
| Setting method | Digital setting using front panel keys |
| Indication method | 11-segment digital display and individual indicators (7-segment display also possible) Character height: PV: 7.5 mm, SV: 3.6 mm |
| Insulation resistance | 20 MΞ© min. (at 500 VDC) |
| Dielectric strength | 2,300 VAC, 50 or 60 Hz for 1 min (between terminals with different charge) |
| Vibration resistance | Malfunction: 10 to 55 Hz, 20 m/s2 for 10 min each in X, Y, and Z directions Destruction: 10 to 55 Hz, 0.75-mm single amplitude for 2 hrs each in X, Y, and Z directions |
| Shock resistance | Malfunction: 100 m/s2, 3 times each in X, Y, and Z directions Destruction: 300 m/s2, 3 times each in X, Y, and Z directions |
| Ambient temperature (Operating) | β10 to 55Β°C (with no condensation or icing), for 3-year warranty: β10 to 50Β°C |
| Ambient temperature (Storage) | β25 to 65Β°C (with no condensation or icing) |
| Ambient humidity (Operating) | 25% to 85% |
| Degree of protection | Front panel: IP66, Rear case: IP20, Terminals: IP00 |
| Case color | Black |
| Terminal type | Screw terminal block |
| Weight | Controller: Approx. 210 g, Adapter: Approx. 4 g Γ 2 |
The Omron E5GN-Q1T is frequently assessed alongside other units in the Digital Temperature Controllers group because they share comparable sensor inputs, panel depth behaviour, and loop-control characteristics. Engineers often evaluate Omron E5GC-QX2DCM-015 (DIN 48 x 24, ON/OFF or 2-PID control with auto-tuning, 24 VAC, 50/60 Hz; 24 VDC, Voltage output (for driving SSR), 11-segment digital display), Omron E5GC-QX2DCM-023 (DIN 48 Γ 24 mm, ON/OFF or 2-PID control with auto-tuning, 24 VAC, 50/60 Hz; 24 VDC, Voltage output (for driving SSR), 11-segment digital display), and Omron E5AC-QQ4ASM-009 (DIN 96 x 96, ON/OFF or 2-PID control, 100 to 240 VAC (50/60 Hz), Voltage output (for driving SSR), 11-segment digital display) when selecting a controller that fits panel wiring, SSR/relay load stages, and enclosure thermal limits. Reviewing shape, control method, supply voltage class, output structure, and indication.
