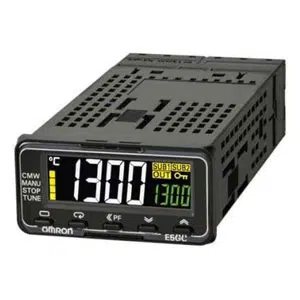

Omron E5GC-QX1DCM-000 Digital Temperature Controller
The Omron E5GC-QX1DCM-000 Temperature Controller is a compact and precise Digital Temperature Controller designed for stable, fast-response industrial temperature control. Its DIN48 x 24 design supports a versatile 1 point input for accurate sensing across various temperature applications. Operating on 24 VAC (50/60 Hz)
24 VDC with an allowable range of 85 to 110% of the power supply voltage , it provides ON/OFF or 2-PID control with auto-tuning for consistent temperature stability. The controller features Voltage output (for driving SSR), 1 point auxiliary outputs, Digital setting using front panel keys, 11-segment digital display for improved visibility, and Screwless clamp terminals wiring for easy panel integration. Manufactured by Omron, part of the Omron Temperature Controller ecosystem within the Omron E5GC Series.
| Brand | Omron |
| Product Type | Temperature Controller |
| Model Number | E5GC-QX1DCM-000 |
Omron E5GC-QX1DCM-000 Temperature Controller - Technical Specifications
| Specification | Value |
|---|---|
| Shape | DIN48 x 24 |
| Fixed/Programmable | Fixed |
| Power supply voltage | 24 VAC (50/60 Hz) 24 VDC |
| Operating voltage range | 85 to 110% of the power supply voltage |
| Power consumption | 1.8 W max. (at 24 VDC) 3.2 VA max. (at 24 VAC) |
| Control method | ON/OFF or 2-PID control with auto-tuning |
| Number of input points | 1 point |
| Input Type/Temperature input | Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, PLII Platinum resistance thermometer: Pt100, JPt100 Infrared Thermosensor: 10 to 70 β, 60 to 120 β, 115 to 165 β, 140 to 260 β |
| Control output 1 | Voltage output (for driving SSR) |
| Control output 2 | None |
| Number of total auxiliary output | 1 point |
| Setting method | Digital setting using front panel keys |
| Indication method | 11-segment digital display and individual indicators |
| Insulation resistance | 20 MΞ© min. (at 500 VDC) |
| Dielectric strength | 3,000 VAC 50/60 Hz 1 min (Between current-carrying terminals of different polarity) |
| Vibration resistance | Destruction: 10 to 55 Hz, 20 m/s2 for 2 h each in X, Y, and Z directions Malfunction: 10 to 55 Hz, 20 m/s2 for 10 min each in X, Y, and Z directions |
| Shock resistance | Destruction: 300 m/s2, 3 times each in X, Y, and Z directions Malfunction: 100 m/s2, 3 times each in X, Y, and Z directions |
| Ambient temperature (Operating) | -10 to 55 β (with no freezing or condensation) For 3-year warranty with standard mounting: -10 to 50 β (with no freezing or condensation) |
| Ambient temperature (Storage) | -25 to 65 β |
| Ambient humidity (Operating) | 25 to 85 % |
| Degree of protection | Front panel: IP66, Rear case: IP20, Terminal section: IP00 |
| Case color | Black |
| Terminal type | Screwless clamp terminals |
| Weight | Controller: Approx. 210 g, Adapter: Approx. 4 g Γ 2 |
The Omron E5GC-QX1DCM-000 is frequently assessed alongside other units in the Digital Temperature Controllers group because they share comparable sensor inputs, panel depth behaviour, and loop-control characteristics. Engineers often evaluate Omron E5GC-CX1DCM-015 (DIN 48 Γ 24 mm, ON/OFF or 2-PID control with auto-tuning, 24 VAC, 50/60 Hz; 24 VDC, Linear current output, 11-segment digital display), Omron E5GC-CX2A6M-016 (DIN 48 Γ 24 mm, ON/OFF or 2-PID control with auto-tuning, 24 VAC, 50/60 Hz; 24 VDC, Linear current output, 11-segment digital display), and Omron E5GC-RX2D6M-023 (DIN 48 x 24, ON/OFF or 2-PID control with auto-tuning, 24 VAC, 50/60 Hz; 24 VDC, Relay output, 11-segment digital display) when selecting a controller that fits panel wiring, SSR/relay load stages, and enclosure thermal limits. Reviewing shape, control method, supply voltage class, output structure, and indication style builds a clearer link between.
