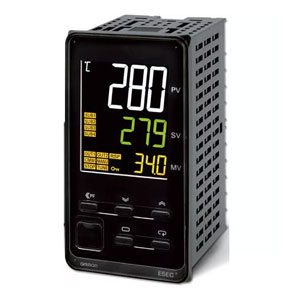

Omron E5EC-RR2ASM-810 Digital Temperature Controller
The Omron E5EC-RR2ASM-810 Temperature Controller is a compact and precise Digital Temperature Controller designed for stable, fast-response industrial temperature control. Its 48 × 96 mm design supports a versatile operates on 24 VAC, 50/60 Hz; 24 VDC with an allowable range of 85 to 110% of the power supply voltage , it provides ON/OFF control or 2-PID control (with auto-tuning) for consistent temperature stability. The controller features Relay output 1, Relay output 2, 2 point auxiliary outputs, Digital setting using front panel keys, 11-segment digital display for improved visibility, and Screw Terminal Block wiring for easy panel integration. Manufactured by Omron, part of the Omron Temperature Controller ecosystem within the Omron E5EC Series.
Omron E5EC-RR2ASM-810 Temperature Controller - Technical Specifications
Specification
Value
Shape
48 × 96 mm
Power supply voltage
24 VAC, 50/60 Hz; 24 VDC
Operating voltage range/ Allowable voltage variable range
85 to 110% of the power supply voltage
Power consumption
6.6 VA max. at 100 to 240 VAC, and 4.1 VA max. at 24 VAC or
2.3 W max. at 24 VDC
Control method
ON/OFF control or 2-PID control (with auto-tuning)
Input Type/Temperature input
Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, or PL II
Platinum resistance thermometer: Pt100 or JPt100
Infrared temperature sensor (ES1B): 10 to 70°C, 60 to 120°C, 115 to 165°C, or 140 to 260°C
Control output 1
Relay output
Control output 2
Relay output
Number of total auxiliary output
2 point
Setting method
Digital setting using front panel keys
Indication method
11-segment digital display and individual indicators
Insulation resistance
20 MΩ min. (at 500 VDC)
Dielectric strength
3,000 VAC, 50/60 Hz for 1 min between terminals of different charge
Vibration resistance
10 to 55 Hz, 20 m/s2 for 2 hrs each in X, Y, and Z directions
Shock resistance
300 m/s2, 3 times each in X, Y, and Z directions
Ambient temperature (Operating)
-10 to 55°C (with no condensation or icing)
Ambient temperature (Storage)
-25 to 65 ℃ (with no freezing or condensation)
Ambient humidity (Operating)
25% to 85%
Degree of protection
Front panel: IP66, Rear case: IP20, Terminals: IP00
Terminal type
Screw Terminal Block
Weight
Controller: Approx. 210 g, Adapter: Approx. 4 g × 2
The Omron E5EC-RR2ASM-810 is frequently assessed alongside other units in the Digital Temperature Controllers group because they share comparable sensor inputs, panel depth behaviour, and loop-control characteristics. Engineers often evaluate Omron E5EC-QR2DSM-810 (48 × 96 mm, ON/OFF control or 2-PID control, 24 VAC, 50/60 Hz; 24 VDC, Voltage output, 11-segment digital display), Omron E5EC-CR2DSM-804 (48 × 96 mm, ON/OFF control or 2-PID control, 24 VAC, 50/60 Hz; 24 VDC, Relay output, 11-segment digital display), and Omron E5EC-QX2ABM-800 (48 × 96 mm, ON/OFF control or 2-PID control (with auto-tuning), 100 to 240 VAC, Voltage output, 11-segment digital display) when selecting a controller that fits panel wiring, SSR/relay load stages, and enclosure thermal limits. Reviewing shape, control method, supply voltage class, output structure, and indication style builds a clearer link between field sensors, heater.
