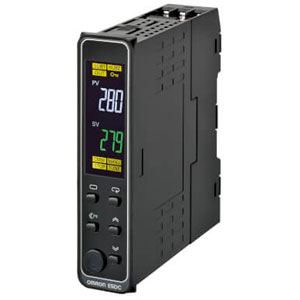

Omron E5DC-RX2DSM-800 Digital Temperature Controller
The Omron E5DC-RX2DSM-800 Temperature Controller is a compact and precise Digital Temperature Controller designed for stable, fast-response industrial temperature control. Its 22.5 Γ 96 mm DIN Track-mounting design supports a versatile 1 point input for accurate sensing across various temperature applications. Operating on 24 VAC, 50/60 Hz; 24 VDC with an allowable range of 85% to 110% of rated supply voltage , it provides ON/OFF or 2-PID control with auto-tuning for consistent temperature stability. The controller features Relay output, 2 auxiliary outputs, and a bright 11-segment digital display for clear visibility. Its Screw Terminals wiring system ensures quick installation and easy maintenance, while its removable terminal block simplifies replacement. Designed for efficient connections to HMIs and PLCs Manufactured by Omron, part of the Omron Temperature Controller ecosystem within the Omron E5DC Series.
| Brand | Omron |
| Product Type | Temperature Controller |
| Model Number | E5DC-RX2DSM-800 |
Omron E5DC-RX2DSM-800 Temperature Controller - Technical Specifications
| Specification | Value |
|---|---|
| Shape | 22.5 Γ 96 mm |
| Power supply voltage | 24 VAC, 50/60 Hz; 24 VDC |
| Operating voltage range | 85% to 110% of rated supply voltage |
| Power consumption | 4.9 VA max. at 100 to 240 VAC, and 2.8 VA max. at 24 VDC or 1.5 W max. at 24 VDC |
| Control method | ON/OFF or 2-PID control with auto-tuning |
| Number of input points | 1 point |
| Input Type/Temperature input | Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, PLII Platinum resistance thermometer: Pt100, JPt100 Infrared Thermosensor: 10 to 70 β, 60 to 120 β, 115 to 165 β, 140 to 260 β |
| Control output 1 | Relay output |
| Number of total auxiliary output | 2 |
| Setting method | Digital setting using front panel keys |
| Indication method | 11-segment digital display and individual indicators; Character height: PV: 15.2 mm, SV: 7.1 mm |
| Insulation resistance | 20 MΞ© min. (at 500 VDC) |
| Dielectric strength | 3,000 VAC, 50/60 Hz for 1 min between terminals of different charge |
| Vibration resistance | 11 to 55 Hz, 20 m/s2 for 2 hr each in X, Y, and Z directions |
| Shock resistance | 301 m/s2, 3 times each in X, Y, and Z directions |
| Ambient temperature (Operating) | β10 to 55Β°C (with no condensation or icing) |
| Ambient temperature (Storage) | β25 to 65Β°C (with no condensation or icing) |
| Ambient humidity (Operating) | 25% to 85% |
| Degree of protection | IP20, Terminal unit: IP00 |
| Terminal type | Screw Terminals |
| Weight | Controller: Approx. 210 g, Adapter: Approx. 4 g Γ 2 |
The Omron E5DC-RX2DSM-800 is frequently assessed alongside other units in the Digital Temperature Controllers group because they share comparable sensor inputs, panel depth behaviour, and loop-control characteristics. Engineers often evaluate Omron E5DC-QX2ASM-017 (22.5 mm wide, ON/OFF or 2-PID control, 100 to 240 VAC, 50/60 Hz, Voltage output (for driving SSR), 11-segment digital displays and individual indicators; Character height: PV: 8.5 mm, SV: 8.0 mm), Omron E5DC-RX2DUM-802 (48 Γ 48 mm, ON/OFF control or 2-PID control, 24 VAC, 50/60 Hz; 24 VDC, Relay output), and Omron E5DC-CX2ABM-800 (48 Γ 48 mm, ON/OFF control or 2-PID control (with auto-tuning), 100 to 240 VAC, Linear current output) when selecting a controller that fits panel wiring, SSR/relay load stages, and enclosure.
