Omron E5CN-HV2M-500 Digital Temperature Controller

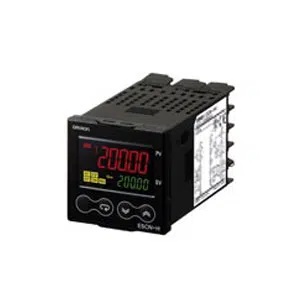

The Omron E5CN-HV2M-500 Temperature Controller is a compact and precise Advanced Digital Temperature Controller designed for stable, fast-response industrial temperature control. Its 1/16 DIN 48 × 48 × 78 (W × H × D) design supports a versatile operates on 100 to 240 VAC, 50/60 Hz with an allowable range of 85 to 110% of the power supply voltage, it provides ON/OFF or 2-PID control with auto-tuning for consistent temperature stability. The controller includes a Linear voltage output, 2 auxiliary outputs, Digital setting using front panel keys, 11-segment digital display for clear visibility, and Screw terminal blocks for easy and secure panel integration. Manufactured by Omron, part of the Omron Temperature Controller ecosystem within the Omron E5CN Series.
Omron E5CN-HV2M-500 Temperature Controller - Technical Specifications
Specification
Value
Shape
1/16 DIN 48 × 48 × 78 (W × H × D)
Power supply voltage
100 to 240 VAC, 50/60 Hz
Operating voltage range/ Allowable voltage variable range
85 to 110% of the power supply voltage
Power consumption
100 to 240 VAC: 8.5 VA (max.) (E5CN-HR2 at 100 VAC: 3.0 VA)
24 VAC/VDC: 5.5 VA (24 VAC)/3.5 W (24 VDC) (max.) (E5CN-HR2D at 24 VAC: 2.7 VA)
Control method
ON/OFF or 2-PID control with auto-tuning
Input Type/Temperature input
Thermocouple: K, J, T, E, L, U, N, R, S, B, W, or PL II
Platinum resistance thermometer: Pt100 or JPt100
Current input: 4 to 20 mA or 0 to 20 mA
Voltage input: 1 to 5 V, 0 to 5 V, or 0 to 10 V
Control output 1
Linear voltage output
Number of total auxiliary output
2
Setting method
Digital setting using front panel keys
Indication method
11-segment digital display and individual indicators (7-segments displays also possible); Character height: PV: 11 mm, SV: 6.5 mm
Insulation resistance
20 MΩ min. (at 500 VDC)
Dielectric strength
2,300 VAC, 50 or 60 Hz for 1 min (between terminals with different charge)
Vibration resistance
Malfunction: 10 to 55 Hz, 20 m/s2 for 10 min each in X, Y, and Z directions
Destruction: 10 to 55 Hz, 0.75-mm single amplitude for 2 hrs each in X, Y, and Z directions
Shock resistance
Malfunction: 100 m/s2, 3 times each in X, Y, and Z directions
Destruction: 300 m/s2, 3 times each in X, Y, and Z directions
Ambient temperature (Operating)
−10 to 55°C (with no condensation or icing), for 3-year warranty: −10 to 50°C
Ambient temperature (Storage)
−25 to 65°C (with no condensation or icing)
Ambient humidity (Operating)
25% to 85%
Degree of protection
Front panel: IP66, Rear case: IP20, Terminals: IP00
Case color
Black
Terminal type
Screw terminal blocks
Weight
Controller: Approx. 210 g, Adapter: Approx. 4 g × 2
The Omron E5CN-HV2M-500 is frequently assessed alongside other units in the Digital Temperature Controllers group because they share comparable sensor inputs, panel depth behaviour, and loop-control characteristics. Engineers often evaluate Omron E5CN-HC2M-500 (1/16 DIN 48 × 48 × 78 (W × H × D), ON/OFF or 2-PID control, 100 to 240 VAC, 50/60 Hz, Current output, 11-segment digital display and individual indicators (7-segments displays also possible); Character height: PV: 11 mm, SV: 6.5 mm), Omron E5CN-HQ2M-500 (1/16 DIN 48 × 48 × 78 (W × H × D), ON/OFF or 2-PID control, 100 to 240 VAC, 50/60 Hz, Voltage output (for driving SSR), 11-segment digital display and individual indicators (7-segments displays also possible); Character height: PV: 11 mm, SV: 6.5 mm), and Omron E5CN-HR2M-500 (1/16 DIN 48 × 48 × 78 (W × H × D), ON/OFF or 2-PID control with.
