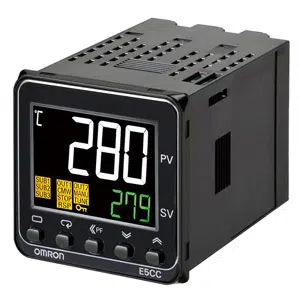

Omron E5CC-CX2ASM-800 Digital Temperature Controller

The Omron E5CC-CX2ASM-800 Temperature Controller is a DIN 48 × 48 digital controller configured with a linear current output for industrial temperature regulation. This model supports two input points and operates from 100 to 240 VAC at 50/60 Hz, with an allowable supply range of 85% to 110% of rated voltage. ON/OFF or 2-PID control with auto-tuning provides the control logic for managing the connected temperature process. Its linear current output provides the primary interface between temperature regulation and connected control equipment. Front-panel keys support digital setting, while an 11-segment digital display presents operating information and screw terminals provide electrical connections. The E5CC-CX2ASM-800 represents an E5CC Series model within the industrial temperature controller range from Omron process automation.

Brand	Omron
Product	Temperature Controllers
Model Number	E5CC-CX2ASM-800

Omron E5CC-CX2ASM-800 Temperature Controller - Technical Specifications

Specification	Value
Shape	DIN 48 × 48 mm
Power supply voltage	100 to 240 VAC, 50/60 Hz
Operating voltage range/ Allowable voltage variable range	85% to 110% of rated supply voltage
Power consumption	5.2 VA max.
Control method	ON/OFF control or 2-PID control (with auto-tuning)
Number of input points	2 point
Input Type/Temperature input	Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, PLII Platinum resistance thermometer: Pt100, JPt100 Infrared Thermosensor: 10 to 70 ℃, 60 to 120 ℃, 115 to 165 ℃, 140 to 260 ℃
Control output 1	Linear current output
Control output 2	None
Setting method	Digital setting using front panel keys
Indication method	11-segment digital display and individual indicators
Insulation resistance	20 MΩ min. (at 500 VDC)
Dielectric strength	3,000 VAC, 50/60 Hz for 1 min between terminals of different charge
Vibration resistance	Malfunction 10 to 55 Hz, 20 m/s2 for 10 min each in X, Y, and Z directions Resistance 10 to 55 Hz, 20 m/s2 for 2 hrs each in X, Y, and Z directions
Shock resistance	Malfunction 100 m/s2, 3 times each in X, Y, and Z directions Resistance 300 m/s2, 3 times each in X, Y, and Z directions
Ambient temperature (Operating)	-10 to 55°C (with no condensation or icing)
Ambient temperature (Storage)	-25 to 65°C (with no condensation or icing)
Ambient humidity (Operating)	25 to 85 %
Degree of protection	Front panel: IP66, Rear case: IP20, Terminals: IP00
Terminal type	Screw terminal block
Weight	Approx. 120 g, Adapter: Approx. 10 g
