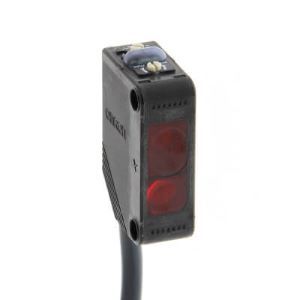

Omron E3Z-LS81 5M Photoelectric Sensor
The Omron E3Z-LS81 5M Photoelectric Sensor offers Distance-setting, 20 to 200 mm Sensing distance, PNP Output, Pre Wired Cable, 5m Length, Red LED (670 nm) Light source, 12 to 24 VDC Power supply voltage, Light-ON/Dark-ON selectable mode. Manufactured by Omron under the Omron Photoelectric Sensors category, this model belongs to the Omron E3Z Series.
| Brand | Omron |
| Product | Photoelectric Sensors |
| Model Number | E3Z-LS81 5M |
Omron E3Z-LS81 5M Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing Method | Distance-setting |
| Shape | Square type |
| Sensing Distance | 20 to 200 mm |
| Power Supply Voltage | 12 to 24 VDC |
| Output Configuration | PNP |
| Connection Method | Pre Wired Cable, 5m Length |
| Current Consumption | 30 mA max. |
| Light Source (Wavelength) | Red LED (670 nm) |
| Operation Mode | Light-ON/Dark-ON selectable |
| Response Time | 1 ms max. |
| Degree Of Protection | IEC: IP67 |
| Material | Polybutylene terephthalate (PBT) |
| Material Lens | Denatured Polyarylate |
| Features | Transparent detection |
| Weight | 65g |
