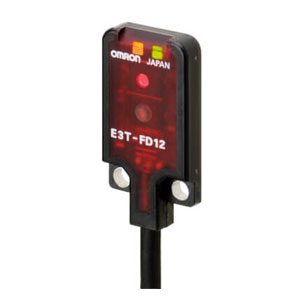

Omron E3T-FD14 5M Photoelectric Sensor
The Omron E3T-FD14 5M Photoelectric Sensor offers Rectangular type, Diffuse-reflective, 5 to 30 mm Sensing distance, PNP Output, Pre-wired cable length 5m, Red LED Light source, 12 to 24 VDC Power supply voltage, Dark-ON mode. Manufactured by Omron under the Omron Photoelectric Sensors category, this model belongs to the Omron E3T Series.
| Brand | Omron |
| Product Type | Photoelectric Sensors |
| Model Number | E3T-FD14 5M |
Omron E3T-FD14 5M Photoelectric Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Shape | Rectangular type |
| Sensing Method | Diffuse-reflective |
| Sensing Distance | 5 to 30 mm |
| Light Source (wavelength) | Red LED |
| Connection Method | Pre-wired cable length 5m |
| Power Supply Voltage | 12 to 24 VDC |
| Output Configuration | PNP |
| Current Consumption | 20 mA max. |
| Operation Mode | Dark-ON |
| Response time | 1 ms max. |
| Degree of protection | IP67 |
| Material Case | Polybutylene terephthalate |
| Material Lens | Denatured Polyarylate |
| Weight | 20g |
