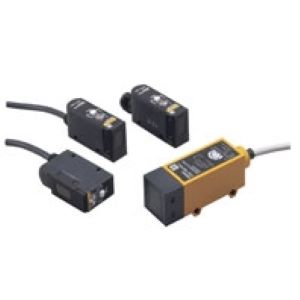

Omron E3S-LS3NW 2M Photoelectric Sensor
The Omron E3S-LS3NW 2M Photoelectric Sensor features convergent-reflective with a10–60 mm range, NPN output, and red LED (660 nm) light source for accurate short-distance sensing. It operates on a 12–24 VDC power supply and is part of the Omron automation range under the Omron Photoelectric Sensors category and the Omron E3S Series. With 25 mA current consumption, Light-ON operation mode, 1 ms response time, IP67 protection, and a 2 m pre-wired cable, it ensures durable and stable operation in industrial environments.
| Brand | Omron |
| Product Type | Photoelectric Sensor |
| Model Number | E3S-LS3NW 2M |
Omron E3S-LS3NW 2M Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Sensing Method | Convergentreflective |
| Sensing Distance | 10 to 60 mm |
| Light Source | Red LED (660 nm) |
| Power Supply Voltage | 12 to 24 VDC, ripple (p-p) 10% max. |
| Output configuration | NPN |
| Connection Method | Pre-wired 2 M cable |
| Current Consumption | 25 mA max. |
| Control Output | Load power supply voltage: 24 VDC max., Load current: 100 mA max., |
| Operation Mode | Light-ON |
| Response Time | Operate or reset: 1 ms max. |
| Timer Function | OFF-delay range: 0.1 to 1.0 s (adjustable) |
| Ambient Illumination | Incandescent lamp: 5,000 lux max. |
| Ambient Temperature Range | Operating: −10 to 55°C (with no icing or condensation) Storage: −25 to 70°C (with no icing or condensation) |
| Ambient Humidity Range | Operating: 35% to 85% (with no condensation) Storage: 35% to 95% (with no condensation) |
| Insulation Resistance | 20 MΩ min. (at 500 VDC) |
| Dielectric Strength | 1,000 VAC at 50/60 Hz for 1 minute |
| Vibration Resistance | Destruction: 10 to 55 Hz with a 1.5-mm double amplitude for 2 hrs each in X, Y and Z directions |
| Shock Resistance | Destruction: 500 m/s2, 3 times each in X, Y and Z directions |
| Protection Circuits | Power supply reverse polarity protection, Output short-circuit protection, Mutual interference prevention |
| Degree of Protection | IEC 60529 IP40 |
| Material | ABS (Acrylonitril Butadiene Styrene, Methacrylic resin |
| Weight | Approx. 80 g |
Designed for precision applications, the Omron E3S-LS3NW 2M uses a Red LED (660 nm) light source and supports convergent-reflective sensing across a 10 to 60 mm sensing distance. Operating on a 12 to 24 VDC power supply with just 25 mA max. current consumption, it’s ideal for power-sensitive installations. Its NPN output and Light-ON operation mode allow for flexible system integration, while the integrated OFF-delay timer (0.1 to 1.0 s) enhances control over signal behavior in high-speed environments.
Built for durability, the E3S-LS3NW 2M includes robust protection circuits like reverse polarity, short-circuit, and mutual interference prevention. Housed in ABS and methacrylic resin, this model offers resistance to shock (500 m/s²) and vibration (10 to 55 Hz), operating reliably between −10 to 55°C. With an IP40 protection rating, it suits enclosed and clean applications, especially in electronics and automation sectors. Backed by Omron’s quality standards, this sensor ensures stable, long-lasting performance.
