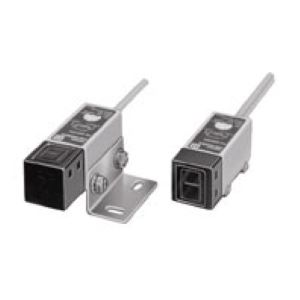

Omron E3S-DS10E4 Photoelectric Sensor
The Omron E3S-DS10E4 Photoelectric Sensor is a diffuse-reflective offering 100 mm sensing distance for transparent and opaque objects with an infrared LED (950 nm) light source. It operates on a 12 to 24 VDC power supply and belongs to the Omron automation range under the Omron Photoelectric Sensors category and the Omron E3S Series. Featuring a pre-wired cable connection, 40 mA current consumption, Light-ON/Dark-ON selectable operation, 1 ms response time, and IP67 protection, this photoelectric sensor with built-in amplifier ensures high-quality and reliable detection in industrial environments.
| Brand | Omron |
| Product Type | Photoelectric Sensor |
| Model Number | E3S-DS10E4 |
Omron E3S-DS10E4 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing Method | Diffuse-reflective |
| Sensing Distance | 100 mm (white paper 50 x 50 mm) |
| Standard Sensing Object | Transparent, opaque |
| Light Source | Infrared LED (950 nm) |
| Power Supply Voltage | 12 to 24 VDC |
| Connection Method | Pre-wired cable |
| Current Consumption | 40 mA max |
| Control Output | Output current: 1.5 to 4 mA, Load current: 80 mA max. (residual voltage: 2 V max.) |
| Operation Mode | Light-ON/Dark-ON (selectable) |
| Response Time | Operate or reset: 1 ms max. |
| Sensitivity Adjustment | With an indicator |
| Ambient Illumination | Incandescent lamp: 3,000 lx max. Sunlight: 10,000 lx max. |
| Ambient Temperature Range | Operating: β25 to 55Β°C, Storage: β40 to 70Β°C (with no icing or condensation) |
| Ambient Humidity Range | Operating: 35% to 85%, Storage: 35% to 95% (with no condensation) |
| Insulation Resistance | 20 MΞ© min. at 500 VDC |
| Dielectric Strength | 1,000 VAC, 50/60 Hz for 1 min |
| Vibration Resistance | 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock Resistance | 500 m/s2 3 times each in X, Y, and Z directions |
| Degree of Protection | IEC IP65 |
| Material | Polybutylene terephthalate, Polycarbonate, Iron |
Built for reliable object detection, the Omron E3S-DS10E4 Photoelectric Sensor uses infrared LED (950 nm) technology to detect transparent and opaque surfaces with a sensing range of up to 100 mm. Designed for flexibility, it offers selectable Light-ON/Dark-ON modes, a compact pre-wired body, and precise detection capabilities enhanced by an integrated sensitivity indicator. With a quick response time of 1 ms, this sensor is ideal for fast-moving applications such as packaging lines, labeling systems, and component positioning.
Operating at 12 to 24 VDC , the E3S-DS10E4 draws a low current consumption of 40 mA and provides a control output up to 80 mA. Engineered with a durable polycarbonate and iron housing, and rated for IP65 protection, it withstands industrial conditions such as vibration, shock, and fluctuating humidity. This sensor maintains high performance even under incandescent lighting and direct sunlight up to 10,000 lx. Trusted by automation engineers worldwide, the E3S-DS10E4 offers a cost-effective, rugged solution for stable object detection.
