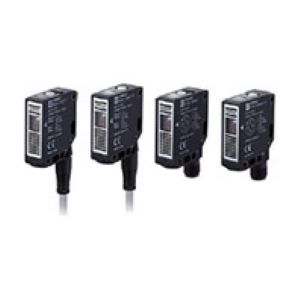

Omron E3S-DBP21T Photoelectric Sensor
The Omron E3S-DBP21T Photoelectric Sensor is a transparent object detection, retro-reflective with MSR function offering a 3.5 m sensing distance (when using E39-R8) and PNP output for precise object detection. It operates on a 10β30 VDC power supply and is part of the Omron automation portfolio under the Omron Photoelectric Sensors category and the Omron E3S Series. With a red LED (624 nm) light source, 720 mW power consumption, 30 VDC load power supply voltage, 100 mA load current, 0.5 ms response time, M12 connector, and IP67 protection, it ensures highly stable performance in demanding industrial environments.
| Brand | Omron |
| Product | Photoelectric Sensors |
| Model Number | E3S-DBP21T |
Omron E3S-DBP21T Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing Method | Retroreflective (with MSR function) |
| Sensing Distance | 0 to 3.5 m |
| Light Source | Red LED (624 nm) |
| Power Supply Voltage | 10 to 30 VDC |
| Output Configuration | PNP |
| Connection Method | Connector M12 |
| Power Consumption | 720 mW max. (current consumption: 30 mA max. at power supply voltage of 24 VDC) |
| Control Output | Load power supply voltage: 30 VDC max., Load current: 100 mA max. (Residual voltage: 2 V max.) |
| Response Time | Operate or reset: 0.5 ms max. |
| Indicators | Light indicator (orange) and stability indicator (green) |
| Ambient Illumination | (Receiver side) Incandescent lamp: 3,000 lx max., Sunlight: 10,000 lx max. |
| Ambient Temperature Range | Operating: β25 to 60Β°C, Storage: β40 to 70Β°C (with no icing or condensation) |
| Ambient Humidity Range | Operating: 35% to 85%, Storage: 35% to 95% (with no condensation) |
| Insulation Resistance | 20 MΞ© min. (at 500 VDC) |
| Dielectric Strength | 1,000 VAC at 50/60 Hz for 1 minute |
| Vibration Resistance | Destruction: 10 to 55 Hz with double amplitude of 1.5 mm for 2 hours each in X, Y, and Z directions |
| Shock Resistance | Destruction: 500 m/s2 3 times each in X, Y, and Z directions |
| Protection Circuits | Reversed power supply polarity protection, output short-circuit protection, reversed output polarity protection, and mutual interference prevention |
| Degree Of Protection | IEC IP67, DIN 40050-9 IP69K |
| Material | Polybutylene terephthalate (PBT)/ABS, Methacrylic resin (PMMA), Polyester elastomer, Polyvinyl chloride (PVC) |
| Weight | Approx. 60 g/approx. 40 g |
Designed for demanding industrial environments, the Omron E3S-DBP21T combines precision and durability. This retroreflective photo sensor uses a Red LED (624 nm) light source to detect transparent targets with a sensing range of 0 to 3.5 meters. Operating on a 10β30 VDC power supply, it offers a PNP output with fast 0.5 ms response, making it suitable for packaging, bottling, and material handling systems.
The sensor includes IP67 and IP69K protection, stability and light indicators, and a rugged build using PBT, ABS, and stainless steel. It withstands high humidity, vibrations, and shock, backed by reverse polarity and short-circuit protection. Trusted across manufacturing lines, the E3S-DBP21T is a go-to choice for transparent object detection.
