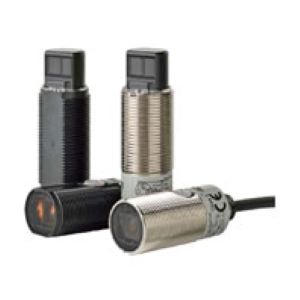

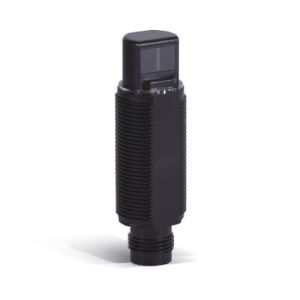

Omron E3RA-DP22 Photoelectric Sensor
The Omron E3RA-DP22 Photoelectric Sensor is a diffuse-reflective with 300 mm detection range, red LED (624 nm) light source, and PNP output for precise object detection. Operating on a 10β30 VDC power supply with M12 connector, it is part of the Omron automation range under the Omron Photoelectric Sensors category and the Omron E3RA Series. This M18 threaded barrel, radial type plastic sensor features 25 mA current consumption, Light-ON/Dark-ON selectable mode, 0.5 ms response time, and one-turn sensitivity adjustment. Built with ABS, PMMA, POM materials, it includes IP67 and IP69K protection, shock/vibration resistance, 20 MΞ© insulation resistance, and reverse polarity protection circuits for industrial reliability.
| Brand | Omron |
| Product | Photoelectric Sensors |
| Model Number | E3RA-DP22 |
Omron E3RA-DP22 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing Method | Diffuse-reflective |
| Sensing Distance | 300 mm (white paper: 300 Γ 300 mm) |
| Light Source | Red LED (624 nm) |
| Power Supply Voltage | 10 to 30 VDC (include voltage ripple of 10%(p-p) max.) |
| Output Configuration | PNP |
| Connection Method | M12 Connector |
| Current Consumption | 25 mA max. |
| Control Output | Load current: 100 mA max. (Residual voltage: 2 V max.), Load power supply voltage: 30 VDC max. |
| Operation Mode | Light-ON/Dark-ON selectable by wiring |
| Response Time | 0.5 ms |
| Sensitivity Adjustment | One-turn adjuster |
| Indicators | Operation indicator (orange) Stability indicator (green) |
| Ambient Illumination | Incandescent lamp: 3,000 lx max./ Sunlight: 10,000 lx max. |
| Ambient Temperature Range | Operating: -25 to 55Β°C/ Storage: -40 to 70Β°C (with no icing or condensation) |
| Ambient Humidity Range | Operating: 35 to 85%/ Storage: 35 to 95% (with no condensation) |
| Insulation Resistance | 20 MΞ© min. at 500 VDC |
| Dielectric Strength | 1,000 VAC at 50/60 Hz for 1 min. between current-carrying parts and case |
| Vibration Resistance | Destruction: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y and Z directions |
| Shock Resistance | Destruction: 500 m/s2 3 times each in X, Y and Z directions |
| Protection Circuits | Power supply reverse polarity protection, Output short-circuit protection, and Output reverse polarity protection |
| Degree Of Protection | IEC: IP67, DIN 40050-9: IP69K |
| Material | ABS, PMMA, POM, POM |
| Weight | Approx. 20 g/ Approx. 10 g |
The Omron E3RA-DP22 Photoelectric Sensor is a diffuse-reflective type sensor designed for precise detection tasks in industrial automation. It operates on a 10 to 30 VDC power supply and provides a PNP open collector output for easy connection with control devices. With a 300 mm sensing distance and M12 connector interface, it ensures dependable installation and signal transmission. Part of the Omron E3RA Series, this model uses a polarity-free red LED and offers high environmental resistance with IP67 and IP69K protection for stable performance in industrial conditions.
Used extensively in automation systems, this sensor performs well in packaging, material handling, and assembly applications. It accurately detects object presence, even under dusty or wet conditions, supporting reliable process control. The radial shape allows flexible installation on conveyors or robotic arms, while the single-turn adjuster makes on-site sensitivity tuning simple. With its quick 0.5 ms response time, it maintains consistent operation in dynamic production lines, enhancing overall equipment efficiency and productivity.
The Omron E3RA-DP22 Photoelectric Sensor belongs to a versatile family of models under the E3RA Series, offering varied configurations for industrial requirements. For similar functionality with NPN output, the Omron E3RA-DN22 Photoelectric Sensor provides identical sensing distance and specifications but supports NPN switching for alternate wiring preferences. The Omron E3RA-DP12 2M Photoelectric Sensor delivers the same PNP performance but comes with a pre-wired 2 m cable instead of an M12 connector. Alternatively, the Omron E3RA-RP21 Photoelectric Sensor offers a retro-reflective sensing method with a longer 0.1 to 4 m range using an E39-R1S reflector, ideal for extended detection distances. The Omron E3RA-DP22 ensures reliable short-range diffuse detection where precision and compact installation are essential.
The Omron E3RA-DP22 Photoelectric Sensor combines a robust plastic housing, radial configuration, and IP69K sealing to handle harsh industrial conditions. It operates efficiently between β25Β°C and 55Β°C, maintaining durability across temperature variations. Its stable red LED output and sensitivity adjuster simplify calibration and minimize downtime. Recognized under the trusted Omron brand, this E3RA Series sensor provides consistent detection performance for Indiaβs industrial automation environments, supporting reliable operation in manufacturing, logistics, and machinery control applications.
