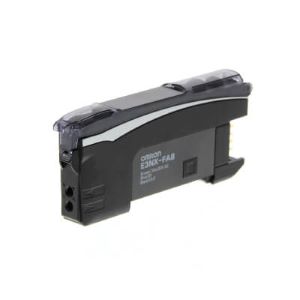

Omron E3NX-FA8 Fiber Optic Sensor
The Omron E3NX-FA8 Fiber Optic Sensor is a smart CPU Unit amplifier designed for high-precision Object detection. It features a Cuboid, rail mounting structure with an Amplifier with potentiometer and a durable System connector. The sensor supports PNP output, Red LED (625 nm), Dark-ON, Light-ON operation, and runs on 10-30 VDC with a fast 0.03 ms response. Built with Polycarbonate, it includes Timer, Bank function, 1 channel, 1 output, and IP50 protection. Manufactured by Omron, part of the Omron Fiber Optic Sensor group within the Omron E3NX Series.
| Brand | Omron |
| Product Type | Fiber Optic Sensor |
| Model Number | E3NX-FA8 |
Omron E3NX-FA8 Fiber Optic Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Shape | Cuboid, rail mounting |
| Sensing Method | Amplifier with potentiometer |
| Application | Object detection |
| Connection Method | System connector |
| Output | PNP |
| Light Source | Red LED (625 nm) |
| Operation Mode | Dark-ON, Light-ON |
| Power Supply Voltage | 10-30 VDC |
| Function | Timer |
| Response Time | 0.03 ms |
| Material Housing | Polycarbonate |
| Number of channels | 1 |
| Features | Bank function |
| Number of Digital Outputs | 1 |
| Degree of Protection | IP50 |
| Weight | Approx. 115 g/ approx. 75 g |
Object detection
