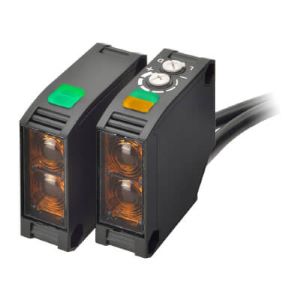

E3JK-TP11 2M - Omron 40m PNP Photoelectric Sensor
E3JK-TP11 2M Omron 40m PNP Photoelectric Sensor Technical Specifications
| Spec | Value |
|---|---|
| Brand | Omron |
| Product Type | Photoelectric Sensors |
| Product | E3JK-TP11 2M |
Omron 40m PNP Photoelectric Sensor E3JK-TP11 2M Technical Specifications:
| Specification | Value |
|---|---|
| Shape | Cuboid |
| Sensing Method | Through-beam |
| Emitter Number | E3JK-TP11-L 2M |
| Receiver Number | E3JK-TP11-D 2M |
| Sensing Distance | 40000 mm |
| Light Source (wavelength) | Red LED (624 nm) |
| Connection Method | Pre Wired Cable, 2M Length |
| Power Supply Voltage | 10 to 30 VDC |
| Output Configuration | PNP output |
| Power Consumption | 40 mA max. |
| Operation Mode | Light-ON/Dark-ON |
| Response time | 20 ms max. |
| Degree of protection | IEC: IP64 |
| Material Case | ABS (Acrylonitrile Butadiene Styrene) |
| Material Cable | PVC |
| Material Lens | Methacrylic resin |
| Features | Multi voltage power supply |
| Weight | 300g |
Send Your Inquiry for Omron 40m PNP Photoelectric Sensor, E3JK-TP11 2M with cost-effective solutions. Essential Technical Specs of E3JK-TP11 2M Emitter: E3JK-TP11-L 2M Receiver: E3JK-TP11-D 2M cover Cuboid, Through-beam, Red LED (624 nm), Pre Wired Cable, 2M Length. It also delivers 10 to 30 VDC, PNP output, Light-ON/Dark-ON . Capture the Best Deal with a Quote for your requirement of Omron 40m PNP Photoelectric Sensor. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
