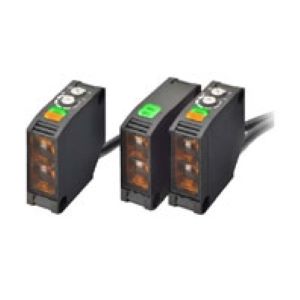

Omron E3JK-DR13 2M Photoelectric Sensor
The Omron E3JK-DR13 2M Photoelectric Sensor features diffuse-reflective with, 2.5 m sensing range, and infrared LED with relay output. It operates on a selectable AC/DC power supply selectable and belongs to the Omron industrial automation family under the Omron Photoelectric Sensors category and the Omron E3JK Series. The sensor includes a 2 m pre-wired cable and offers high reliability for stable detection in industrial environments.
| Brand | Omron |
| Product Type | Photoelectric Sensor |
| Model Number | E3JK-DR13 2M |
Omron E3JK-DR13 2M Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing Method | Diffuse-reflective |
| Sensing Distance | White paper (300 Γ 300 mm): 2.5 m |
| Light Source | Infrared LED (850 nm) |
| Power Supply Voltage | 24 to 240 VDC , ripple (p-p): 10% max. 24 to 240 VAC , 50/60 Hz |
| Output configuration | Relay |
| Connection Method | Pre-wired 2 M Cable |
| Power Consumption | 2 W max., 2 W max. |
| Control Output | Relay output SPDT, 250 VAC, 3 A max. (cosΟ= 1), 5 VDC, 10 mA min. |
| Operation Mode | Light-ON/Dark-ON selectable |
| Response Time | 20 ms max. |
| Sensitivity Adjustment | One-turn adjuster |
| Ambient Illumination | Incandescent lamp: 3,000 lx max., Sunlight: 11,000 lx max. |
| Ambient Temperature Range | Operating: β25Β°C to 55Β°C, Storage: β40Β°C to 70Β°C (with no icing or condensation) |
| Ambient Humidity Range | Operating: 35% to 85%, Storage: 35% to 95% (with no condensation) |
| Insulation Resistance | 20 MΞ© min. at 500 VDC |
| Dielectric Strength | 1,500 VAC, 50/60 Hz for 1 min |
| Vibration Resistance | 10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock Resistance | 500 m/s2 for 3 times each in X, Y, and Z directions, 100 m/s2 for 3 times each in X, Y, and Z directions |
| Protection Circuits | Mutual interference prevention function |
| Degree of Protection | IEC 60529 IP64 |
| Material | ABS (Acrylonitrile Butadiene Styrene), Methacrylic resin, POM, PVC |
| Weight | Approx. 180 g |
The Omron E3JK-DR13 2M Photoelectric Sensor is an infrared diffuse-reflective sensor designed for precise object detection in industrial automation systems. It offers a 2.5 m sensing distance with a 24β240 VAC/DC power supply, making it suitable for both AC and DC control environments. The sensorβs relay output (SPDT) enables easy integration with control panels, and its IP64 protection ensures reliable operation in dusty or humid factory conditions. It is part of the Omron E3JK Series, known for consistency and robust optical performance.
This model is ideal for conveyor monitoring, packaging lines, and automated assembly machines where consistent presence or absence detection is required. Its infrared LED reduces false triggers caused by ambient light, ensuring stable sensing in challenging industrial settings. The adjustable sensitivity and selectable Light-ON/Dark-ON modes allow flexible configuration according to application needs, enhancing precision and reducing downtime during setup or maintenance.
By maintaining high electrical insulation resistance and strong vibration endurance, the Omron E3JK-DR13 2M ensures long-term durability even under mechanical stress. The sensorβs quick 20 ms response time supports fast-moving production lines, while its compact ABS housing provides mechanical protection and easy installation in confined areas. This makes it an efficient and reliable choice for automation engineers seeking dependable optical detection within mixed voltage environments.

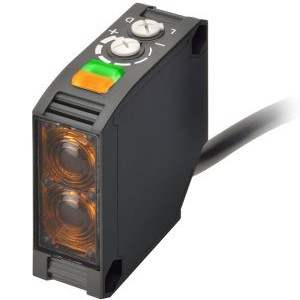

The Omron E3JK-DR13 2M Photoelectric Sensor is a diffuse-reflective type sensor offering a 2.5 m sensing distance with an infrared LED light source, relay output, and a selectable AC/DC power supply in a durable pre-wired 2 m cable design. For users preferring a red LED version with the same 2.5 m sensing range, the Omron E3JK-DR11 2M Photoelectric Sensor provides similar functionality with a different light source. If shorter detection is suitable, the Omron E3JK-DR12 2M Photoelectric Sensor offers a 300 mm range using a red LED. Additionally, the Omron E3JK-DR14 2M Photoelectric Sensor combines a 300 mm sensing distance with an infrared LED for close-range precision in compact setups.
In summary, the Omron E3JK-DR13 2M Photoelectric Sensor combines stable detection, robust design, and easy wiring in one compact unit. With its 2.5 m infrared sensing range, IP64 protection rating, and relay output, it supports a wide range of industrial automation processes. Designed under the Omron E3JK Series, it represents a dependable sensing component for engineers focused on reliable and precise automation performance across India.
