Omron E3JK-DN12 2M Photoelectric Sensor
The Omron E3JK-DN12 2M Photoelectric Sensor features diffuse-reflective type, NPN output, and a precise 300 mm detection range using a red LED emitter and receiver. It operates on a DC power supply and is part of the Omron industrial automation range, listed under the Omron Photoelectric Sensors category within the Omron E3JK Series. Equipped with a durable 2 m pre-wired cable, it ensures stable, accurate object detection in industrial applications.
| Brand | Omron |
| Product Type | Photoelectric Sensors |
| Model Number | E3JK-DN12 2M |
Omron E3JK-DN12 2M Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Shape | Square type |
| Sensing Method | Diffuse-reflective |
| Sensing Distance | 300 mm |
| Light Source (wavelength) | Red LED (624 nm) |
| Connection Method | Pre Wired Cable, 2M Length |
| Power Supply Voltage | 10 to 30 VDC |
| Output Configuration | NPN |
| Power Consumption | 30 mA Max |
| Operation Mode | Light-ON/Dark-ON |
| Response time | 1 ms max. |
| Degree of protection | IEC 60529 IP64 |
| Material Case | ABS (Acrylonitrile Butadiene Styrene) |
| Material Cable | PVC |
| Material Lens | Methacrylic resin |
| Features | Multi voltage power supply |
| Weight | 160g |
The Omron E3JK-DN12 2M Photoelectric Sensor is a diffuse-reflective type sensor built for consistent detection in industrial automation. It operates on a 10β30 VDC power supply and provides a 300 mm sensing range using a red LED light source. This model delivers NPN output for easy integration with controllers and PLCs. The sensor enclosure is rated IP64, offering solid protection against dust and moisture in demanding environments. It belongs to the Omron E3JK Series, a trusted lineup designed for stable and precise sensing in automated systems.
The Omron E3JK-DN12 2M Photoelectric Sensor is used across conveyors, assembly machines, and material handling systems. It detects objects without physical contact, ensuring reliable operation in packaging lines and robotic setups. Its short response time of 1 ms supports high-speed automation, while the 2M pre-wired cable simplifies installation. Industries such as automotive, food processing, and logistics use this model for detecting parts, packaging materials, and containers efficiently.

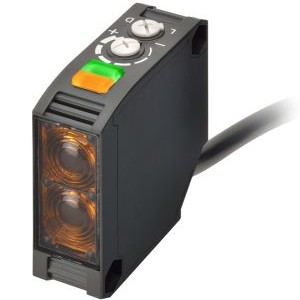

The Omron E3JK-DN12 2M Photoelectric Sensor is a diffuse-reflective type sensor offering a 300 mm sensing distance with a red LED light source and NPN output, powered by DC and equipped with a pre-wired 2 m cable for reliable short-range object detection. For extended detection requirements, the Omron E3JK-DN11 2M Photoelectric Sensor provides a 2.5 m sensing range using the same red LED. Alternatively, the Omron E3JK-DN13 2M Photoelectric Sensor features an infrared LED for better performance in reflective environments. Those preferring identical sensing distance but with infrared light can select the Omron E3JK-DN14 2M Photoelectric Sensor, designed for improved stability under varying lighting conditions. The Omron E3JK-DN12 2M ensures precise, consistent detection across automated assembly and material handling applications, making it a dependable choice for compact industrial setups.
The Omron E3JK-DN12 2M Photoelectric Sensor is built for durability and accuracy in continuous operation. Its ABS housing and PVC cable maintain long-term performance even in harsh industrial conditions. Engineers value its simple wiring, multi-voltage compatibility, and dependable output consistency. For businesses using Omron sensors across automation lines, this model provides stable detection performance that supports both safety and efficiency in every process.
