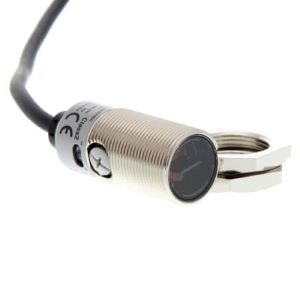

Omron E3FB-DN11 2M Photoelectric Sensor
The Omron E3FB-DN11 2M Photoelectric Sensor offers Cylindrical axial, Diffuse reflective, 100 mm sensing distance, NPN Output, Pre Wired Cable,2M Length, Red LED Light source, 10 to 30 VDC Power supply voltage, Light-ON/Dark-ON mode. Manufactured by Omron under the Omron Photoelectric Sensors category, this model belongs to the Omron E3FB Series.
| Brand | Omron |
| Product Type | Photoelectric Sensors |
| Model Number | E3FB-DN11 2M |
Omron E3FB-DN11 2M Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Shape | Cylindrical axial |
| Sensing Method | Diffuse reflective |
| Sensing Distance | 100 mm |
| Light Source Wavelength | Red LED |
| Connection Method | Pre Wired Cable,2M Length |
| Power Supply Voltage | 10 to 30 VDC |
| Output Configuration | NPN |
| Power Consumption | 25 mA max. |
| Operation Mode | Light-ON/Dark-ON |
| Thread Size | M18 |
| Length | 44 mm |
| Response Time | 0.5ms |
| Degree of Protection | IP67/IP69K |
| Material Housing | Brass, nickel plated |
