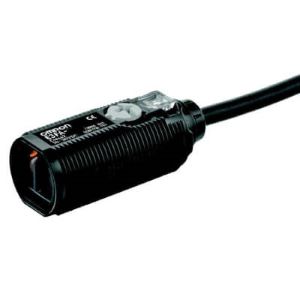

Omron E3FA-RN12 2M Photoelectric Sensor

Omron E3FA-RN12 2M is an NPN coaxial retro-reflective photoelectric sensor with a 0–500 mm sensing distance and a pre-wired 2 m cable. Its coaxial optics detect targets right up to the sensor face, and the MSR (mirror surface rejection) function prevents shiny objects from being mistaken for the E39-R1S reflector. For longer reflector spacing up to 4 m, see the E3FA-RN11 2M. It is part of the Omron E3FA Series. Explore more Omron photoelectric sensors.

Omron E3FA-RN12 2M Photoelectric Sensors

Brand	Omron
Product	Photoelectric Sensors
Model Number	E3FA-RN12 2M

Omron E3FA-RN12 2M Photoelectric Sensor – Technical Specifications

Specification	Value
Sensing Method	Retro-reflective
Shape	Cylindrical axial
Sensing Distance	0 to 500 mm with E39-R1S
Power Supply Voltage	10 to 30 VDC
Output Configuration	NPN
Connection Method	Pre Wired Cable, 2M Length
Light Source (Wavelength)	Red LED
Thread Size	M18
Length	41 mm
Operation Mode	Light-ON/Dark-ON
Response Time	0.5 ms
Degree Of Protection	IP67/IP69K
Material Housing	ABS
Features	M.S.R.

Which E3FA Retro-Reflective (MSR) Model Do You Need?

Model	Type	Range	Output	Connection
E3FA-RN11 2M	Standard	0.1–4 m	NPN	2 m cable
E3FA-RN21	Standard	0.1–4 m	NPN	M12 connector
E3FA-RP11 2M	Standard	0.1–4 m	PNP	2 m cable
E3FA-RP21	Standard	0.1–4 m	PNP	M12 connector
E3FA-RN12 2M	Coaxial	0–500 mm	NPN	2 m cable
E3FA-RP22	Coaxial	0–500 mm	PNP	M12 connector

All ranges are with the E39-R1S reflector.
