Omron E3AS-HL500LMN 2M Photoelectric Sensor

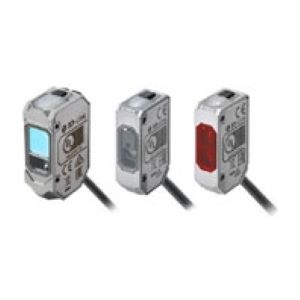

The Omron E3AS-HL500LMN 2M Photoelectric Sensor offers Line beam type, 35 mm to 500 mm Sensing distance, NPN output, Pre-wired 2 M Cable, Red Laser Class 1, 10 to 30 VDC Power supply voltage. Manufactured by Omron under the Omron Photoelectric Sensors category, this model belongs to the Omron E3AS Series.
| Brand | Omron |
| Product | Photoelectric Sensors |
| Model Number | E3AS-HL500LMN 2M |
Omron E3AS-HL500LMN 2M Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Sensing Distance | 35 mm to 500 mm |
| Light Source | Red Laser |
| Laser Class | Class 1 |
| Power Supply Voltage | 10 to 30 VDC |
| Output Configuration | NPN |
| Connection Method | Pre-wired 2 M Cable |
| Current Consumption | 100 mA max. |
| Power Consumption | Power supply reverse polarity protection, Output short-circuit protection, and Output reverse polarity protection |
| Control Output | Load power supply voltage 30 VDC max. (Class2), the total load current of the two outputs is 100 mA max., Residual voltage (Load current 10 mA max.: 1 VDC max., Load current 10 to 100 mA: 2 VDC max.) |
| Response Time | 1.5 ms / 10 ms / 50 ms selectable |
| Indicators | OLED Display (White), Power/Communication indicator, Operation indicator (Orange) |
| Ambient Illumination | Receiver surface illuminance: Incandescent lamp: 20,000 lx max., Sunlight: 25,000 lx max. at distance of 250 mm, Incandescent lamp: 5,000 lx max., Sunlight: 10,000 lx max. at distance of 500 mm |
| Ambient Temperature Range | Operating: -20 to 55°C, Storage: -40 to 70°C (with no icing or condensation) |
| Ambient Humidity Range | Operating: 35% to 85%, Storage: 35% to 95% (with no condensation) |
| Insulation Resistance | 20 MΩ min. at 500 VDC |
| Dielectric Strength | 1,000 VAC, 50/60 Hz for 1 min |
| Vibration Resistance | 10 to 55 Hz with a 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock Resistance | 500 m/s2 for 3 times each in X, Y, and Z directions |
| Protection Circuits | Power supply reverse polarity protection, Output short-circuit protection, and Output reverse polarity protection |
| Degree Of Protection | IP67 (IEC60529) and IP67G (JIS C 0920 Annex 1), IP69K (ISO20653) |
| Material | Stainless steel (SUS316L), Methacrylic resin (PMMA) (Lens cover: Antifouling coating) |
| Weight | Approx. 180 g/approx. 110 g |
Omron E3AS-HL500LMN 2M is a high-precision photoelectric sensor designed for short-range object detection with excellent stability, even under bright lighting or on low-reflectivity surfaces. It uses a Class 1 red laser (660 nm) and supports a configurable sensing range starting at 35 mm. This sensor is ideal for industrial environments requiring accurate sensing on dark, shiny, or transparent objects.
The sensor includes a separate digital amplifier and is equipped with an NPN output. It operates on a 10 to 30 VDC Class 2 power supply and supports a total load current of up to 100 mA. A 2-meter pre-wired cable is standard, and built-in protection features include reverse polarity, output reverse polarity, and short-circuit protection. Its fast and selectable response time options (1.5 ms, 10 ms, 50 ms) make it adaptable for different machine speeds and response requirements.
Operational convenience is enhanced with a bright OLED display and status indicators for power, communication, and operation (orange LED). The E3AS-HL500LMN 2M operates reliably under ambient lighting conditions up to 25,000 lx (sunlight) at 250 mm distance and withstands temperatures from −20°C to 55°C. It also offers excellent durability with vibration resistance (10–55 Hz), shock resistance (500 m/s²), insulation resistance (20 MΩ), and strong dielectric strength (1,000 VAC).
Its enclosure is made of stainless steel (SUS316L), and the lens cover is methacrylic resin (PMMA) with antifouling coating—suitable for hygiene-sensitive industries. It meets IP67, IP67G, and IP69K protection standards, making it an excellent choice for use in washdown areas such as food, beverage, and pharmaceutical environments. The Omron E3AS-HL500LMN 2M offers precise, compact, and configurable laser sensing for automation systems that require reliability and hygiene compliance.
