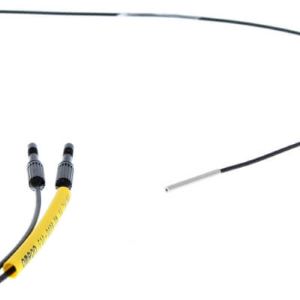

Omron E32-D22B 2M Fiber Optic Sensor

Omron E32-D22B 2M is a 1.5 mm miniature diffuse-reflective fiber optic sensor designed for object detection at sensing distances up to 210 mm. Its cylindrical axial sensing head provides a compact detection point, while the top-view sensing orientation directs the optical path toward the target. Bend-resistant fiber construction supports cable routing where durability and compact installation are important. The 2 m fiber uses a plastic core with a PVC sheath and supports a 4 mm bending radius. IP67 protection and operation from -40 to 70°C support industrial sensing environments. The E32-D22B 2M belongs to the E32 Series within the miniature diffuse fiber sensor range from Omron sensing products, combining a small sensing head with bend-resistant fiber for object detection.

Omron E32-D22B 2M Fiber Optic Sensor
BrandOmron
ProductFiber Optic Sensor
Model NumberE32-D22B 2M

Omron E32-D22B 2M Fiber Optic Sensor - Technical Specifications

SpecificationValue
ShapeCylindrical axial
Sensing Distance210 mm
Sizedia 1.5 mm
Cable Length2 m
Sensing MethodDiffuse reflective
ApplicationObject detection
FeaturesBend resistant, Miniature
Sensing Surface OrientationTop-view
Temperature Range-40-70 °C
Bending Radius4 mm
Free Cutyes
Material CorePlastic
Material SheathPVC
Degree Of Protection IpIP67

The Omron E32-D22B 2M Fiber Optic Sensor uses diffuse-reflective sensing for object detection at distances up to 210 mm. Its cylindrical axial sensing head has a 1.5 mm diameter, creating a miniature optical detection point for installations where sensing-head size is important. The top-view orientation directs the optical path along the sensing arrangement toward the target. Bend-resistant fiber construction is another defining characteristic, supporting cable routing where repeated positioning or compact installation geometry makes fiber durability relevant. The 2 m fiber uses a plastic core with a PVC sheath and provides a 4 mm bending radius. IP67 protection and operation from -40 to 70°C define the supplied environmental characteristics. Important attributes include 1.5 mm miniature sensing, diffuse-reflective detection, cylindrical axial construction, top-view orientation, bend-resistant fiber and 210 mm sensing distance. Within the E32 Series, head diameter, fiber construction, bending radius and sensing distance help separate closely related miniature sensors. The E32-D22B therefore combines a very small sensing head with bend-resistant fiber for short-range object detection. For another supplied D22 model with the same 210 mm diffuse-reflective range but a 3 mm head and flexible fiber, the E32-D22R 2M provides the closest comparison.
