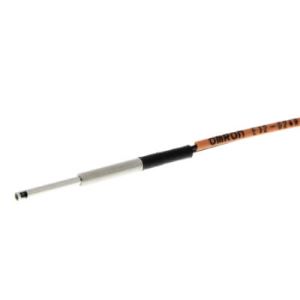

Omron E32-D24R 2M Fiber Optic Sensor
Omron E32-D24R 2M is a miniature diffuse-reflective fiber optic sensor designed for object detection at sensing distances up to 100 mm. Its cylindrical radial construction provides side-view sensing, allowing the detection direction to be positioned differently from conventional axial fiber heads. Flexible miniature fiber construction and a 1 mm bending radius support routing through compact machine spaces. The pre-wired 2 m fiber uses a plastic core with a polyethylene sheath, while IP67 protection and operation from -40 to 70°C support industrial sensing environments. The E32-D24R 2M belongs to the E32 Series within the diffuse fiber sensor range from Omron sensing products, supporting compact side-view object detection.

| Brand | Omron |
| Product | Fiber Optic Sensor |
| Model Number | E32-D24R 2M |
Omron E32-D24R 2M Fiber Optic Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Shape | Cylindrical radial |
| Sensing Distance | 100 mm |
| Connection Method | Pre Wired Cable, 2M Length |
| Sensing Method | Diffuse reflective |
| Application | Object detection |
| Features | Flexible fiber, Miniature |
| Temperature Range | -40-70 °C |
| Bending Radius | 1mm |
| Free Cut | yes |
| Material Core | Plastic |
| Sensing Direction | Side-view |
| Material Sheath | Polyethylene |
| Degree Of Protection Ip | IP67 |
The Omron E32-D24R 2M Fiber Optic Sensor uses diffuse-reflective sensing for object detection at distances up to 100 mm. Its cylindrical radial structure creates a side-view sensing direction, making sensing orientation a primary distinction from axial E32 fiber heads. This arrangement can position the optical detection point perpendicular to the cable path where machine geometry requires side-facing detection. Flexible miniature fiber construction supports routing through restricted spaces, while the specified 1 mm bending radius allows tight cable positioning. The pre-wired 2 m fiber uses a plastic core with a polyethylene sheath. IP67 protection and an operating temperature range from -40 to 70°C define the supplied environmental characteristics. The important product relationships are side-view sensing, diffuse reflection, miniature fiber construction, flexible cable routing and object detection. These attributes provide stronger model-selection context than secondary physical specifications. Within the E32 family, sensing direction, head geometry, bending radius and sensing distance are useful distinctions between related diffuse-reflective models. The E32-D24R therefore combines compact radial sensing with highly flexible fiber routing. For another supplied D24-series E32 sensor with a related sensing-head configuration, the E32-D24-S2 2M provides a relevant related model.
