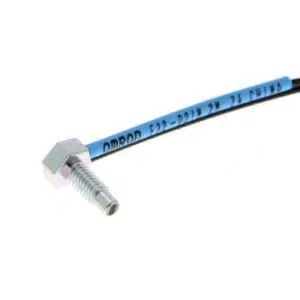

Omron E32-D21N 2M Fiber Optic Sensor
Omron E32-D21N 2M is an M4 diffuse-reflective fiber optic sensor designed for object detection at sensing distances up to 1260 mm. Its threaded M4 sensing head combines a right-angle sensing surface with a 90° cable exit and hexagonal back, supporting compact mounting and cable routing. Flexible fiber construction allows the cable to follow restricted machine paths, while the 2 m fiber uses a plastic core with a polyethylene sheath and supports a small 2 mm bending radius. IP67 protection and operation from -40 to 70°C support industrial sensing conditions. The E32-D21N 2M belongs to the E32 Series within the diffuse fiber sensor range from Omron sensing products, combining compact M4 mounting with flexible long-range object detection.
| Brand | Omron |
| Product | Fiber Optic Sensor |
| Model Number | E32-D21N 2M |
Omron E32-D21N 2M Fiber Optic Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Shape | Threaded |
| Sensing Distance | 1260 mm |
| Size | M4 |
| Cable Length | 2 m |
| Sensing Method | Diffuse reflective |
| Application | Object detection |
| Features | 90° cable exit, Flexible fiber, Hexagonal back |
| Sensing Surface Orientation | Right-angle |
| Temperature Range | -40-70 °C |
| Bending Radius | 2 mm |
| Free Cut | yes |
| Material Core | Plastic |
| Material Sheath | Polyethylene |
| Degree Of Protection Ip | IP67 |
The Omron E32-D21N 2M Fiber Optic Sensor uses diffuse-reflective sensing for object detection at distances up to 1260 mm. Its threaded M4 sensing head provides a compact mounting interface, while the right-angle sensing surface positions the optical direction relative to the cable path. A 90° cable exit and hexagonal back further define the sensing-head geometry for installation. Flexible fiber construction supports routing through restricted machine spaces, while the 2 m fiber uses a plastic core with a polyethylene sheath and provides a small 2 mm bending radius. IP67 protection and operation from -40 to 70°C define the supplied environmental characteristics. Important characteristics include M4 threaded mounting, diffuse-reflective object detection, right-angle sensing, flexible fiber, compact cable routing and 1260 mm sensing distance. Within the E32 Series, mounting size, sensing principle, optical orientation and bending radius help distinguish related fiber heads. The E32-D21N therefore combines long-range diffuse detection with an M4 head and highly flexible cable routing. For another supplied E32 diffuse-reflective model with the same 1260 mm sensing distance, right-angle structure and 2 mm bending radius but an M6 threaded head, the E32-LD11N 2M provides the closest comparison.
