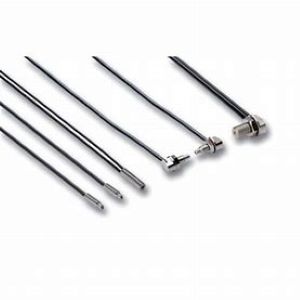

Omron E32-D12F 2M Fiber Optic Sensor
Omron E32-D12F 2M is a diffuse-reflective fiber optic sensor designed for object detection at sensing distances up to 280 mm. Its cylindrical axial sensing head uses a top-view sensing direction, while the pre-wired 2 m fiber supports installation between the sensing point and compatible fiber amplifier. Chemical, oil and heat-resistant fiber construction with a fluororesin sheath supports applications requiring a specialized cable structure. The fiber has a 40 mm bending radius, IP67 protection and an operating range from -40 to 70°C. The E32-D12F 2M belongs to the E32 Series within the diffuse fiber sensing range from Omron sensing products, connecting reflective object detection with industrial machine sensing.

| Brand | Omron |
| Product | Fiber Optic Sensor |
| Model Number | E32-D12F 2M |
Omron E32-D12F 2M Fiber Optic Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Shape | Cylindrical axial |
| Sensing Distance | 280 mm |
| Connection Method | Pre Wired Cable, 2M Length |
| Sensing Method | Diffuse reflective |
| Application | Object detection |
| Features | R40 chemical, oil and heat resistant fiber |
| Temperature Range | -40-70 °C |
| Bending Radius | 40 mm |
| Free Cut | yes |
| Material Core | Plastic |
| Sensing Direction | Top-view |
| Material Sheath | Fluororesin |
| Degree Of Protection Ip | IP67 |
The Omron E32-D12F 2M Fiber Optic Sensor uses diffuse-reflective sensing for object detection at distances up to 280 mm. Its cylindrical axial structure places the sensing direction along the sensor-head axis, while the supplied top-view orientation defines the optical relationship with the target. A key model characteristic is its chemical, oil and heat-resistant fiber construction, which differentiates it from general-purpose E32 fiber heads using conventional cable materials. The pre-wired fiber uses a plastic core with a fluororesin sheath and supports a 40 mm bending radius. Its 2 m configuration provides separation between the sensing point and compatible fiber amplifier. IP67 protection and an operating temperature range from -40 to 70°C define the supplied environmental capability. The important product relationships are diffuse-reflective detection, cylindrical axial sensing, resistant fiber construction, fluororesin sheath and object detection. These attributes provide more useful model-selection context than secondary physical values. Within the E32 Series, sensing method, fiber material, head geometry and sensing distance help distinguish specialized variants. The E32-D12F therefore combines reflective object detection with a specialized fiber construction. For another E32 model in the supplied range using a specialized sensing construction, the E32-D81R-S 2M provides a relevant related option.
