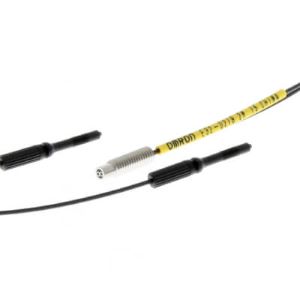

Omron E32-D21B 2M Fiber Optic Sensor
Omron E32-D21B 2M is a diffuse-reflective fiber optic sensor designed for object detection at sensing distances up to 450 mm. Its threaded sensing structure provides a defined mounting format, while the top-view sensing direction positions the optical path toward the target. R4 bend-resistant fiber construction supports cable routing where repeated positioning or tight installation geometry makes fiber flexibility important. The pre-wired 2 m fiber uses a plastic core with a PVC sheath and supports a 4 mm bending radius. IP67 protection supports industrial sensing conditions. The E32-D21B 2M belongs to the E32 Series within the diffuse fiber optic sensor range from Omron sensing products, combining bend-resistant fiber construction with compact object detection.

| Brand | Omron |
| Product | Fiber Optic Sensor |
| Model Number | E32-D21B 2M |
Omron E32-D21B 2M Fiber Optic Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Shape | Threaded |
| Sensing Distance | 450mm |
| Connection Method | Pre Wired Cable, 2M Length |
| Sensing Method | Diffuse reflective |
| Application | Object detection |
| Features | R4 bend resitant fiber |
| Temperature Range | -40-70 °C |
| Bending Radius | 4 mm |
| Free Cut | yes |
| Material Core | Plastic |
| Sensing Direction | Top-view |
| Material Sheath | PVC |
| Degree Of Protection Ip | IP67 |
The Omron E32-D21B 2M Fiber Optic Sensor uses diffuse-reflective sensing for object detection at distances up to 450 mm. Its threaded sensing structure provides a defined mounting format, while the top-view sensing direction establishes the optical relationship between the sensing head and target. R4 bend-resistant fiber construction is an important model characteristic because it differentiates this sensor from standard fiber configurations where cable flexibility is not the primary attribute. The pre-wired 2 m fiber uses a plastic core with a PVC sheath and supports a 4 mm bending radius for compact cable routing. IP67 protection and operation from -40 to 70°C define the supplied environmental characteristics. The important product relationships are diffuse-reflective detection, threaded sensing, bend-resistant fiber, top-view orientation, compact cable routing and object detection. These attributes provide stronger model-selection context than weight or unrelated secondary specifications. Within the E32 Series, sensing method, head structure, bending characteristics, sensing direction and detection distance help distinguish individual fiber heads. The E32-D21B therefore combines a 450 mm sensing range with bend-resistant fiber construction. For another supplied miniature E32 diffuse-reflective model with the same 450 mm sensing distance and bend-resistant fiber concept, the E32-D221B 2M provides a relevant comparison.
