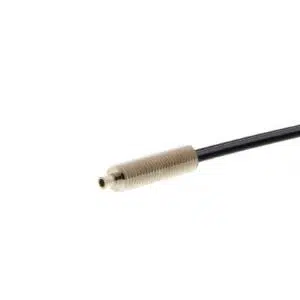

Omron E32-CC200 2M Fiber Optic Sensor
Omron E32-CC200 2M is an M6 diffuse-reflective fiber optic sensor designed for object detection with a single sensing head and a sensing distance up to 2100 mm. Its small-spot lens concentrates the sensing area on the target, while the threaded M6 body and top-view sensing surface support practical machine mounting. The 2 m fiber cable uses a plastic core with a polyethylene sheath, and the specified bending radius is 25 mm. IP67 protection and an operating range from -40 to 70°C support industrial sensing environments. The E32-CC200 belongs to the E32 Series within the diffuse fiber optic sensor range from Omron sensing products for machine object detection.
| Brand | Omron |
| Product | Fiber Optic Sensor |
| Model Number | E32-CC200 2M |
Omron E32-CC200 2M Fiber Optic Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Shape | Threaded |
| Sensing Distance | 2100 mm |
| Size | M6 |
| Cable Length | 2 m |
| Sensing Method | Diffuse reflective |
| Application | Object detection |
| Features | Small spot with lens |
| Sensing Surface Orientation | Top-view |
| Temperature Range | -40-70 °C |
| Bending Radius | 25 mm |
| Free Cut | yes |
| Material Core | Plastic |
| Material Sheath | Polyethylene |
| Degree Of Protection Ip | IP67 |
The Omron E32-CC200 2M Fiber Optic Sensor uses diffuse-reflective sensing for object detection with a single sensing head. Unlike through-beam fiber arrangements that use separate transmitting and receiving points, this model directs and receives light through the same sensing location. Its threaded M6 body provides a defined mounting format, while the top-view sensing orientation directs detection toward the target. A small-spot lens concentrates the sensing area, making the optical configuration an important characteristic when target location needs to be defined within the sensor's specified capability. The sensing distance reaches 2100 mm. Its 2 m fiber cable uses a plastic core with a polyethylene sheath and has a 25 mm bending radius. IP67 protection and an operating temperature range from -40 to 70°C support industrial sensing environments. The important semantic relationships are diffuse-reflective detection, M6 fiber head, small-spot sensing, top-view orientation, object detection and fiber optic sensing. These attributes provide stronger model context than secondary physical specifications. Within the E32 family, sensing principle, head size, lens design and sensing distance help separate related models. For another E32 diffuse sensing head from the supplied product range, the E32-D21 2M provides a relevant related model.
