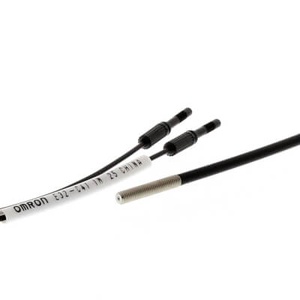

Omron E32-C41 1M Fiber Optic Sensor

Omron E32-C41 1M is an M3 diffuse-reflective fiber optic sensor designed for short-range object detection with a specified sensing distance of 17 mm. Its threaded M3 sensing head uses a top-view optical orientation and supports small-spot detection with a compatible lens, making sensing area and mounting size important selection attributes. The sensor includes a 1 m fiber cable with a plastic core and polyethylene sheath, while its R25 construction provides a 25 mm bending radius. Operation from -40 to 70°C supports a broad temperature range. The E32-C41 1M belongs to the E32 Series within the diffuse fiber optic sensor range from Omron sensing products, combining M3 mounting with short-range small-spot object detection.

Omron E32-C41 1M Fiber Optic Sensor
BrandOmron
ProductFiber Optic Sensor
Model NumberE32-C41 1M

Omron E32-C41 1M Fiber Optic Sensor - Technical Specifications

SpecificationValue
ShapeThreaded
Sensing Distance17 mm
Connection MethodCable
SizeM3
Cable Length1 m
Sensing MethodDiffuse reflective
ApplicationObject detection
FeaturesSmall spot with lens
Sensing Surface OrientationTop-view
Tightening Torque0.78N · m
Temperature Range-40-70 °C
Bending RadiusR25
Material CorePlastic
Material SheathPolyethylene

The Omron E32-C41 1M Fiber Optic Sensor uses diffuse-reflective sensing for object detection at a specified distance of 17 mm. Its threaded M3 sensing head provides a compact mounting format, while the top-view optical structure directs the sensing area toward the target. Small-spot detection with a compatible lens is an important characteristic of this model because it defines a concentrated optical detection area rather than a broad sensing field. The sensor uses a 1 m fiber cable with a plastic core and polyethylene sheath, while the R25 construction provides a 25 mm bending radius. The supplied operating temperature range extends from -40 to 70°C. The main product relationships are M3 threaded sensing, diffuse-reflective detection, small-spot sensing, top-view orientation, short sensing distance and object detection. These attributes provide more useful product context than unrelated mechanical values. Within the E32 Series, sensing distance, head size, optical direction, lens compatibility and cable length help differentiate individual fiber sensing heads. The E32-C41 therefore provides short-range sensing through a compact M3 optical head. For another M3 E32 diffuse-reflective sensor with a longer sensing distance and flexible 2 m fiber, the E32-C21N 2M provides a useful related comparison.
