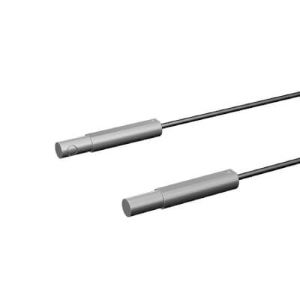

Omron E32-A03 2M Fiber Optic Sensor
Omron E32-A03 2M is a side-view through-beam fiber optic sensor designed for object detection and wafer mapping at sensing distances up to 4000 mm. Its cylindrical radial sensing structure directs the optical path from the side of the sensor head, while flexible fiber construction supports routing through compact machine spaces. The pre-wired 2 m fiber uses a plastic core with a polyethylene sheath and supports a small 1 mm bending radius. IP67 protection and operation from -40 to 70°C support industrial sensing conditions. The E32-A03 2M belongs to the E32 Series within the through-beam fiber sensor range from Omron sensing products, combining flexible side-view sensing with long-distance object detection.

| Brand | Omron |
| Product | Fiber Optic Sensor |
| Model Number | E32-A03 2M |
Omron E32-A03 2M Fiber Optic Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Shape | Cylindrical radial |
| Sensing Distance | 4000 mm |
| Connection Method | Pre Wired Cable, 2M Length |
| Sensing Method | Through-beam |
| Application | Object detection, Wafer mapping |
| Features | Flexible fiber |
| Temperature Range | -40-70 °C |
| Bending Radius | 1 mm |
| Free Cut | yes |
| Material Core | Plastic |
| Sensing Direction | Side-view |
| Material Sheath | Polyethylene |
| Degree Of Protection Ip | IP67 |
The Omron E32-A03 2M Fiber Optic Sensor uses through-beam sensing for object detection and wafer mapping at distances up to 4000 mm. Its cylindrical radial sensing structure creates a side-view optical direction, distinguishing it from axial E32 sensing heads where the beam follows the sensor-body direction. Flexible fiber construction supports routing through compact equipment while maintaining separation between the sensing point and compatible fiber amplifier. The pre-wired 2 m fiber uses a plastic core with a polyethylene sheath and provides a small 1 mm bending radius for tight cable positioning. IP67 protection and an operating temperature range from -40 to 70°C define the supplied environmental characteristics. The important product relationships are through-beam detection, wafer mapping, side-view sensing, flexible fiber, radial sensing geometry and long sensing distance. These attributes provide stronger model-selection context than weight or unrelated secondary specifications. Within the E32 Series, sensing direction, fiber flexibility, application and detection distance help distinguish specialized sensing heads. The E32-A03 therefore combines long-range through-beam sensing with compact side-facing optical detection. For another supplied E32 A-series through-beam model designed for compact object detection, the E32-A04 2M provides a relevant related configuration for comparison.
