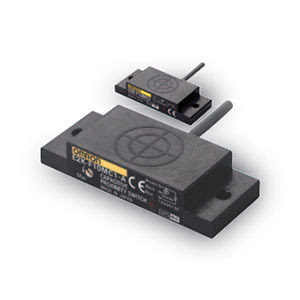

Omron E2K-F10MC1 2M Proximity Sensor
The Omron E2K-F10MC1 2M Proximity Sensor offers Flat, Capacitive, Unshielded, 10 mm Sensing distance, DC 3-wire NPN NO, Pre-wired 2 M Cable , 12 to 24 VDC Power supply voltage, IP66 Protection. Manufactured by Omron under the Omron Proximity Sensors category, this model belongs to the Omron E2K Series.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2K-F10MC1 2M |
Omron E2K-F10MC1 2M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Flat, Capacitive |
| Sensing Distance | 10 mm |
| Setting Distance | 0 to 7.5 mm |
| Output Configuration | DC 3-wire NPN |
| Operation Mode | NO |
| Connection | Pre-wired 2 M Cable |
| Differential Travel | 15% max. of sensing distance |
| Detectable Object | Conductors and dielectrics |
| Standard Sensing Object | 50 Γ 50 Γ 1 mm |
| Response Frequency | 100 Hz |
| Current Consumption | 10 mA max. at 24 VDC |
| Control Output Load Current | 100 mA max. (at 30 VDC) |
| Indicator | Detection indicator (red) |
| Protection Circuit | Reverse polarity protection, Surge suppressor |
| Ambient Temperature Range | Operating/Storage: β10 to 55Β°C (with no icing or condensation) |
| Ambient Humidity Range | Operating/Storage: 35% to 95% |
| Material | Heat-resistant ABS |
| Degree Of Protection | IP66 |
| Weight | Approx. 35 g |
The Omron E2K-F10MC1 2M is typically considered together with other sensors in the E2K-F Flat Capacitive Sensor family because they follow similar mounting patterns, supply ranges, and adjustment behaviour. In practice, engineers often review related models such as Omron TL-N10ME2 2M (Rectangular, 10 mm sensing, Unshielded, DC 3-wire, NPN, NC, Pre-wired 2 M Cable), Omron E2EC-CR5C1 2M (Cable Amplifier, 0.5 mm sensing, Shielded, DC 3-wire NPN, NO, Pre-wired 2 M Cable), and Omron E2EC-C3D1 2M (Cable Amplifier, 3 mm sensing, Shielded, DC 2-Wire, NO, Pre-wired 2 M Cable) when selecting the most suitable variant for a tank, chute, conveyor, or compact fixture location. Comparing type, usable sensing distance, mounting style, output configuration, switching mode, and connection method helps match each sensor to the available mechanical space and wiring layout. The E2K-F10MC1 2M fits naturally into panels, machine frames, dosing systems, and process equipment where a robust Omron Flat Capacitive Sensor is required for repeatable switching in industrial environments.
