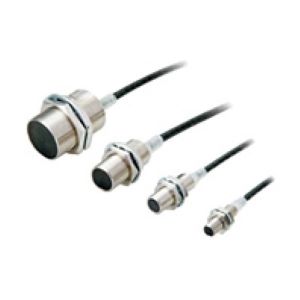

Omron E2ER-X2D1 2M Proximity Sensor
Omron E2ER-X2D1 2M is an M8 shielded inductive sensor designed for a 2 mm sensing distance and 0 to 1.6 mm setting range. It uses DC 3-wire NPN NO operation through a pre-wired 2 m cable and operates from 10 to 30 VDC. Ferrous metal is the specified detection target, paired with an iron 8 × 8 × 1 mm standard sensing object. Response frequency is 1.5 kHz, while load current is specified from 3 to 100 mA. Red operation and green setting indicators are provided, with surge suppression and load short-circuit protection listed. The E2ER-X2D1 2M is part of the oil-resistant proximity sensor range available across Omron automation products.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2ER-X2D1 2M |
Omron E2ER-X2D1 2M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Size | M8 |
| Mounting type | Shielded |
| Sensing Distance | 2 mm |
| Setting Distance | 0 to 1.6 mm |
| Output configuration | DC 3-wire, NPN |
| Operation Mode | NO |
| Connection Method | Pre-wired 2 M Cable |
| Detectable Object | Ferrous metal |
| Standard Sensing Object | Iron, 8 × 8 × 1 mm |
| Response Frequency | 1.5 kHz |
| Power Supply Voltage | 10 to 30 VDC |
| Protection Circuit | Surge suppressor, Load short-circuit protection |
| Ambient Temperature Range | Operating: −25 to 70°C, Storage: −40 to 85°C (with no icing or condensation) |
| Degree of Protection | IP67 (IEC 60529) and IP67G |
| Control Output | 3 to 100 mA |
| Indicators | Operation indicator (red), Setting indicator (green) |
| Materials | Stainless steel (SUS303), Polybutylene terephthalate (PBT), Nickel-plated brass, Zinc-plated iron. |
| Weight | Approx. 65 g |
The Omron E2ER-X2D1 2M Proximity Sensor uses an M8 shielded inductive sensing body with a 2 mm sensing distance and 0 to 1.6 mm setting range. It provides DC 3-wire NPN NO switching through a pre-wired 2 m cable and operates from 10 to 30 VDC. Ferrous metal is the specified target, paired with an iron 8 × 8 × 1 mm standard sensing object. Response frequency is 1.5 kHz, while load current ranges from 3 to 100 mA. A red operation indicator and green setting indicator are provided, together with surge suppression and load short-circuit protection. This configuration suits Omron M8 proximity sensors used where compact oil-resistant metal detection is required.
Operating conditions for the E2ER-X2D1 extend from -25 to 70°C, while storage covers -40 to 85°C with no icing or condensation. IP67 according to IEC 60529 and IP67G are specified for environmental protection. Stainless steel SUS303, PBT, nickel-plated brass, and zinc-plated iron are listed among the construction materials. Shielded sensing supports installation near surrounding metal, while the 2 mm detection distance provides precise short-range sensing. Its NPN NO output and fixed cable support direct machine wiring. For another oil-resistant proximity sensor with a larger M18 body, 7 mm sensing distance, and DC 2-wire operation, see E2EF-X7D1 2M.
