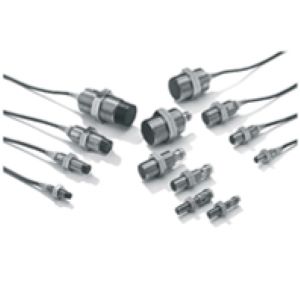

Omron E2A-M08LN04-M1-C1 Proximity Sensor
Omron E2A-M08LN04-M1-C1 is a cylindrical M8 unshielded inductive sensor with a 4 mm sensing distance, 0 to 3.2 mm setting range, and long-body construction. It provides DC 3-wire NPN NO switching through an M12 connector and operates from 12 to 24 VDC. Response frequency is 1,000 Hz, while control output is rated 200 mA max. at 32 VDC max. with a 2 V max. voltage drop. A yellow LED indicates operation, with supply reverse-polarity, surge, and short-circuit protection specified. View the E2A-M08LN04-M1-C1 within the M8 inductive sensor range available from Omron industrial automation products.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2A-M08LN04-M1-C1 |
Omron E2A-M08LN04-M1-C1 Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Housing Shape | Cylindrical |
| Size | M8 |
| Mounting type | Unshielded |
| Sensing Distance | 4 mm |
| Setting Distance | 0 to 3.2 mm |
| Output configuration | DC, 3-wire, NPN |
| Operation Mode | NO |
| Body Length | Long body |
| Connection Method | M12 connector |
| Response Frequency | 1,000 Hz |
| Power Supply Voltage | 12 to 24 VDC |
| Protection Circuit | Power source circuit reverse polarity protection, Surge suppressor, Short-circuit protection |
| Ambient Temperature Range | Operating: −40°C to 70°C, Storage: −40°C to 85°C |
| Degree of Protection | IP67 after IEC 60529, IP69k after DIN 40050, EMC after EN60947-5-2 |
| Control Output | 200 mA max. (32 VDC max.), 2 V max. |
| Indicators | Operation indicator (Yellow LED) |
| Materials | Stainless steel or brass-nickel plated, PBT, PVC, Brass-nickel plated |
| Weight | Approx. 15 g |
The Omron E2A-M08LN04-M1-C1 Proximity Sensor uses a cylindrical M8 unshielded inductive body with a 4 mm sensing distance, 0 to 3.2 mm setting range, and long-body construction. It provides DC 3-wire NPN NO switching through an M12 connector and operates from 12 to 24 VDC. Response frequency is 1,000 Hz, while control output is rated 200 mA max. at 32 VDC max. with a 2 V max. voltage drop. A yellow operation LED is specified together with power-source reverse-polarity protection, surge suppression, and short-circuit protection. Its small diameter and extended threaded body make this configuration suitable for Omron M8 proximity sensor applications requiring compact mounting and NPN normally open operation.
Operating conditions for the E2A-M08LN04-M1-C1 extend from -40 to 70°C, while storage covers -40 to 85°C. IP67 according to IEC 60529, IP69K according to DIN 40050, and EMC according to EN60947-5-2 are specified. Stainless steel or brass-nickel-plated construction, PBT, and PVC are included in the material data. The unshielded sensing arrangement provides the stated 4 mm range, while the long body offers additional threaded adjustment through brackets or fixtures. Its M12 connector enables detachable field wiring during maintenance. For another compact E2A model using NC operation and a 3-pin M8 connector, see E2A-S08KN04-M5-C2.
